How much Sinotruk Howo 12 14 CBM Heavy Duty 336 HP 8X4 Concrete Mixer Cement Mix Truck
Three main part of the concrete mixer truck:
1.German Rexroth Hydraulic pump, Motor, ZF reducer;
2.America Eton Hydraulic pump, Motor ;
3. Italy Bonfiglioli Reducer;
4. Italy PMP Hydraulic pump, Motor and reducer.
5.China brand pump, motor and reducer
Mixing tank:
The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.
Specification of Sinotruk Howo 12 14 CBM Heavy Duty 336 HP 8X4 Concrete Mixer Cement Mix Truck:
Item No. | Parameters | ||
Drive Type | 8X4 Left Hand Drive | ||
Overall Dimension | 11030x2500x3950 mm | ||
Curb weight | 15980 kg | ||
Loading capacity | 30000 kg | ||
Front axle loading capacity | HF9, 1x9000 kg | ||
Rear axle loading capacity | HC16, 2x16000 kg | ||
Max Driving Speed | 75 km/h | ||
Engine | WD615.69, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Engine horsepower | 336 HP | ||
Displacement | 11596CC | ||
Emission Standard | Euro II | ||
Gear Box | HW15710, 10 forwards & 2 reverse | ||
Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Fuel Tank | 300L | ||
Cabin | HOWO 76 Standard Cab, Two seats with 1 sleeper, with air conditioner, 70° hydraulically tillable to the front. | ||
Tire | 12R22.5 Tubeless Tire , 10 pieces with one spare | ||
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Picture for Reference | |||
Mixer Drum | Mixer Capacity | 14 cubic meters | |
Drum thickness | 5mm | ||
Blade thickness | 5mm | ||
Tanker Material: | 16MnQ345 Carbon Steel | ||
Filling Rate(%) | 59 | ||
Input Speed (m3/min) | ≥2.8 | ||
Output Speed (m3/min) | ≥1.2 | ||
Surplus Ratio | ≤0.5 | ||
Tanker Rotate Speed(rpm) | 0~17 | ||
Drum Drive System | Hydraulic Pump | Italy Brand: PMP | |
Hydraulic Motor | Italy Brand: PMP | ||
Speed Reducer | Italy Brand: PMP | ||
Radiator | KAITONG | ||
Water System | Water Tank Volume(L) | 400 |

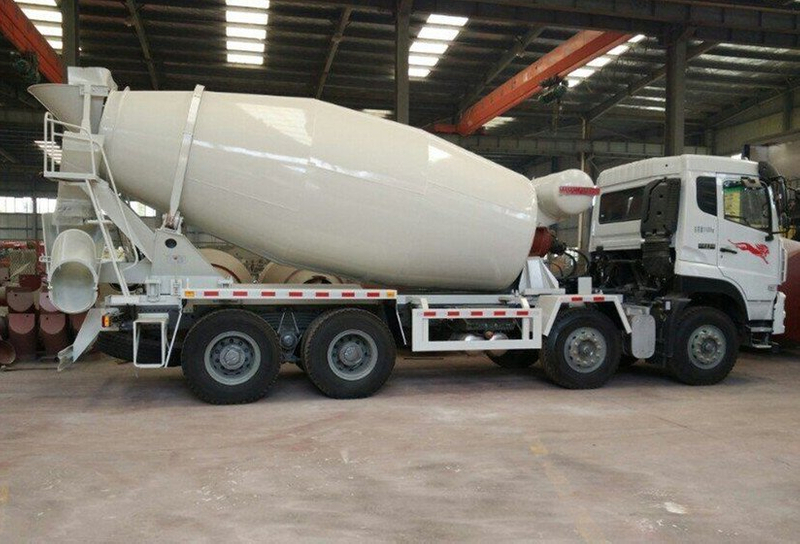

Reference photo of Sinotruk Howo 12 14 CBM Heavy Duty 336 HP 8X4 Concrete Mixer Cement Mix Truck:
How much Sinotruk Howo 12 14 CBM Heavy Duty 336 HP 8X4 Concrete Mixer Cement Mix Truck
Three main part of the concrete mixer truck:
1.German Rexroth Hydraulic pump, Motor, ZF reducer;
2.America Eton Hydraulic pump, Motor ;
3. Italy Bonfiglioli Reducer;
4. Italy PMP Hydraulic pump, Motor and reducer.
5.China brand pump, motor and reducer
Mixing tank:
The main part of concrete mixer transportation truck. It is mainly used for loading and mixing the concrete. The inside part of the mixing tank will have two stagger screw blade in 180 degree.When rotate the tank clock-wisely , the vane will rotate the concrete to the the end of the tank. The concrete will back when it arrived the end of the tank. Then the concrete will be mixed sufficient. When the tank rotated counter-wisely, the concrete will move to the outlet of the mixing tank and unload it out.
Specification of Sinotruk Howo 12 14 CBM Heavy Duty 336 HP 8X4 Concrete Mixer Cement Mix Truck:
Item No. | Parameters | ||
Drive Type | 8X4 Left Hand Drive | ||
Overall Dimension | 11030x2500x3950 mm | ||
Curb weight | 15980 kg | ||
Loading capacity | 30000 kg | ||
Front axle loading capacity | HF9, 1x9000 kg | ||
Rear axle loading capacity | HC16, 2x16000 kg | ||
Max Driving Speed | 75 km/h | ||
Engine | WD615.69, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Engine horsepower | 336 HP | ||
Displacement | 11596CC | ||
Emission Standard | Euro II | ||
Gear Box | HW15710, 10 forwards & 2 reverse | ||
Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Fuel Tank | 300L | ||
Cabin | HOWO 76 Standard Cab, Two seats with 1 sleeper, with air conditioner, 70° hydraulically tillable to the front. | ||
Tire | 12R22.5 Tubeless Tire , 10 pieces with one spare | ||
Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Picture for Reference | |||
Mixer Drum | Mixer Capacity | 14 cubic meters | |
Drum thickness | 5mm | ||
Blade thickness | 5mm | ||
Tanker Material: | 16MnQ345 Carbon Steel | ||
Filling Rate(%) | 59 | ||
Input Speed (m3/min) | ≥2.8 | ||
Output Speed (m3/min) | ≥1.2 | ||
Surplus Ratio | ≤0.5 | ||
Tanker Rotate Speed(rpm) | 0~17 | ||
Drum Drive System | Hydraulic Pump | Italy Brand: PMP | |
Hydraulic Motor | Italy Brand: PMP | ||
Speed Reducer | Italy Brand: PMP | ||
Radiator | KAITONG | ||
Water System | Water Tank Volume(L) | 400 |
Reference photo of Sinotruk Howo 12 14 CBM Heavy Duty 336 HP 8X4 Concrete Mixer Cement Mix Truck:
