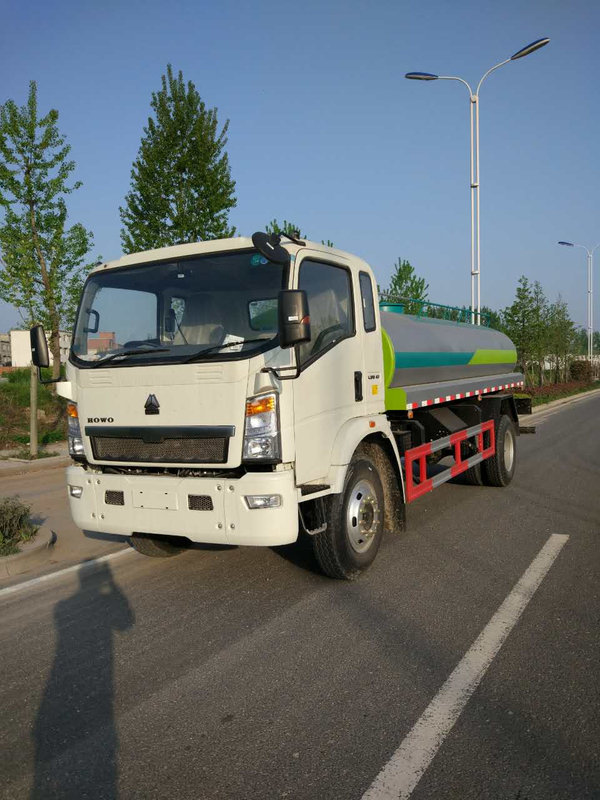

Howo 4x2 10m3 with Spray Bar Delivery Water Spraying Truck
| Item | Unit | Description | ||||||||
| Model | Howo light duty water truck | |||||||||
| Dimension | mm | 7000*2300*2500 | ||||||||
| Tank Dimension | mm | 4000*1550*1050 / 5 m3 | ||||||||
| Option: 5~6 cubic meter, To be confirmed | ||||||||||
| Material | Carbon Steel Q345A | |||||||||
| Option | Stainless Steel 304 for option | |||||||||
| Curb Weight | kg | 3785 | ||||||||
| G.V.W | Kg | 8280 | ||||||||
| Wheel Base | mm | 3800 | ||||||||
| F/R track base | mm | 1600 / 1535 | ||||||||
| F/R Axle-load | Kg | 3000 / 8000 | ||||||||
| Type | Steel Spring | |||||||||
| Approach/Departure angle | . | 16 / 12 | ||||||||
| Traction system | Type | 4*2 | ||||||||
| Tire Specification/Number | Type | 7.50R16 / 6 Units+1 Spare Unit | ||||||||
| Max speed | Km/h | 85 | ||||||||
| Engine | Model | CY4102-CE4D | ||||||||
| Emission/Kw | 3856 cc, 83 Kw / 3200 r | |||||||||
| Horse Power | 113 Hp | |||||||||
| Power | 275 N.m - 1800~2000 r/min | |||||||||
| Type | Diesel, 4 cylinder, turbocharge, water cooling | |||||||||
| Brand | Anhui QuanChai Engine Power. | |||||||||
| Gear box | model | 5F&1R, Manual | ||||||||
| Electronic | V | 12 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversable, Manual | |||||||||
| Steering | Type | Powering | ||||||||
| Installing | LHD or RHD | |||||||||
| Air Condition | Yes | Radio, CD. | ||||||||
| Remark: | Installing water pump to loading or discharge water, side input and output port. Option~ Installing beam alarm light, installing dot alarm light.rear LED alarm light. Option~ if replacing with stainless steel water pump, water pipe, Meanwhile, if installing water spraying function, front and rear spraying, with rear spraying cannon. Option~Installing ABS braking system | |||||||||
Water Tank | |||||
Tank | Volume | 5000L | |||
Material | Q235A Carbon steel | ||||
Thickness(mm) | 5 | ||||
Shape | Ellispe or Square Round | ||||
compartment | Each Compartment equipped with a manhole and anti-wave plate. | ||||
Standard Equipment | 1. Equipped with front,rear,side sprinkler (sprinkling width>14m )
2.Equipped with rear working platform with water cannon which can be turned all-round (range>28m),can be adjusted into flinging, heavy rain,light rain, drizzle model, with security barrier.
3.Equipped with CLW pump(suction lift>6m)
4.Equipped with fire valve, water valve, and filter gauze | ||||
Optional Equipment | 5. Firefighting pipe 6. Firefighting Pump 7.The painting | ||||
Details:
Advantages:
1) Dongfeng famous brand water spraying truck
2) Volume of tank: 5cbm water spraying truck
3) Low oil consumption with good economic water spraying truck
4) Chinese famous brand pump water spraying truck
5) High-pressured Sprinkler, spraying of water to be possible to adjust columnar and the fog shape water spraying truck
6) Optional fire pump and fire-fighting accessories water spraying truck
7) BV ISO CCC approved, accept customes' OEM customized water spraying truck
Fuctions:

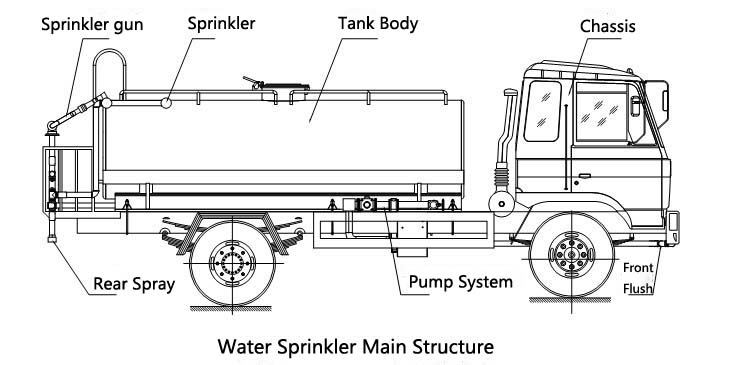

Self suction and self discharge function, front flushes sprinkles, side spurts, post positioned work table.
Applications:
Water sprinkler truck, also known as multifunctional green sprinkler truck, is used for cleaning the city road, large factories, troops, gardens ect. Besides, it can also be used for temporary emergency sprinkler.
CLW GROUP are specialized in manufacturing 5,000L-30,000L water tank truck and exports a large number of trucks abroad every year. Our trucks have a competitive advantage in the market both in price and quality.
