CLW-950SD

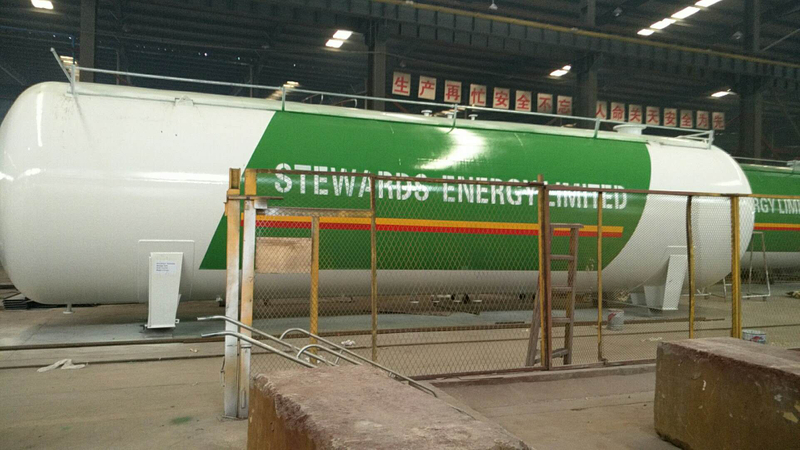

100cbm liquied ammonia storage tanks for sale
Specification of 100cbm Ammonia Storage Tank | |||
Volume of Tank | 100 CBM | ||
Filling Weight | 49400 kg | ||
Tank Weight | 26010 kg | ||
Thickness of Shell (mm) | 20 mm | ||
Thickness of End plate (mm) | 20 mm | ||
Tank Diameter (mm) | 2800 mm | ||
Tank Dimensions (mm) (length x width x height) | 16740*2840*3420 | ||
Material of Tank | Carbon Steel Q345R | ||
Filling Medium | Ammonia | ||
Design Pressure | 2.16MPa | ||
Corrosion Allowance | 2 mm | ||
Medium Density | 520kg/ cbm | ||
Manufacturing Standard:Pressure vessels,Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification/ mm | Quantity | |
Discharge Pipe | DN50 | 1 | |
Inflow Pipe | DN50 | 1 | |
Outlet | DN50 | 1 | |
Gas phase balance pipes | DN50 | 2 | |
Manhole | DN450 | 1 | |
Drain Hole | DN50 | 1 | |
Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,Pressure gauge, Temperature Gauge. | |||
Related Specfication
Procession for lpg tanker
1.We have the LPG Semi Trailer from 40CBM,50CBM,56CBM,58.5CBM,59.52CBM,60CBM
2.We can also provide LPG storage tank ranged from 5CBM, 8CBM,20CBM,50CBM,80CBM,100CBM 120CBM, 150CBM, 200CBM, both on ground ones and underground ones.
3.We have the LPG Filling Station from 5CBM, 10CBM, 15CBM,20CBM,25CBM,40CBM,50CBM
4.We have the LPG Bobtail truck from 3CBM, 5.5CBM,10CBM,12CBM,20CBM,25CBM.
5.We have the LPG Delivery truck from 3CBM, 5CBM,10CBM,12CBM,20CBM,25CBM, 30CBM,35CBM.
Variety of lpg products by CLW group
1)lpg storage tank ( target market Nigeria, Ghana, Niger, Tanzania, Zambia, Kenya, Uganda, Zimbabwe, Botswana, Somalia, Malawi, Mongolia, Thailand, Vietnam, Bangladesh)
2) lpg tank truck
3) lpg tank semi trailer ( tank capacity 40,000l 45,000l 49,000l 50,000l 54,000l 56,000l 59,000l 60,000l)
4) lpg tank container (20ft 30ft 40ft)
5) lpg tank bobtail ( filling accessories: lpg filling gun, lpg filling pump, flow meter)
6) lpg tank skid filling station ( lpg filling scale, lpg dispenser, lpg pump and motor, lpg compressor, flow meter, level gauge, safety valve, cut off valve, bottom base...)
About our company
ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province,China. SuiZhou is near to wuhan, Xiangfan and Shiyan,with these cities, there is a Golden Car Manufacturing hallway along the 318 highway. Among that, SuiZhou is famous as the capital of Chinese special automobile manufactory.
Since being founded in 1998, ChengLi has continually worked to improve its production processes and production tools. Qualified personnel ensure the highest standards of quality control in the manufacture of the principal components and the final assembly. Covering an area of 8 hectares more than 5000 vehicles are produced each year. Our company has independent export right, the product had delivery to many countries around the word. Take 2008 for example, the amount of export reach 2000 units. The registered Labels CLW is well known in these years.
Based on high quality and advanced technology, the leading varieties include more than 200 types of trucks such as water truck, garbage truck, fecal and sewage suction truck,refuse compactor, fuel tank, aerial platform, truck with crane, dump truck, van truck, trailers, fire-fighting truck, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, LPG tank, etc. All products have passed the ISO9001-2000 and t 3C(China Compulsory Certification) standard.
Packaging
Q&A
Q1: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the customer’s requirements?
A: Yes, we can produce by your requirements or technical drawings.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our service：
1)Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...
2)Pressure Vessel Manufacturing: LPG, Liquid Ammonia, Dimethy-ether, Isobutane, Propylene
3)We will reply you for your inquiry in 24 hours.
4)After sending, we will track the products for you once every two days, until you get the products. When you receive the
goods, test them, and give us a feedback. If you have any questions , contact with us, we will provide technique solutions for you.
