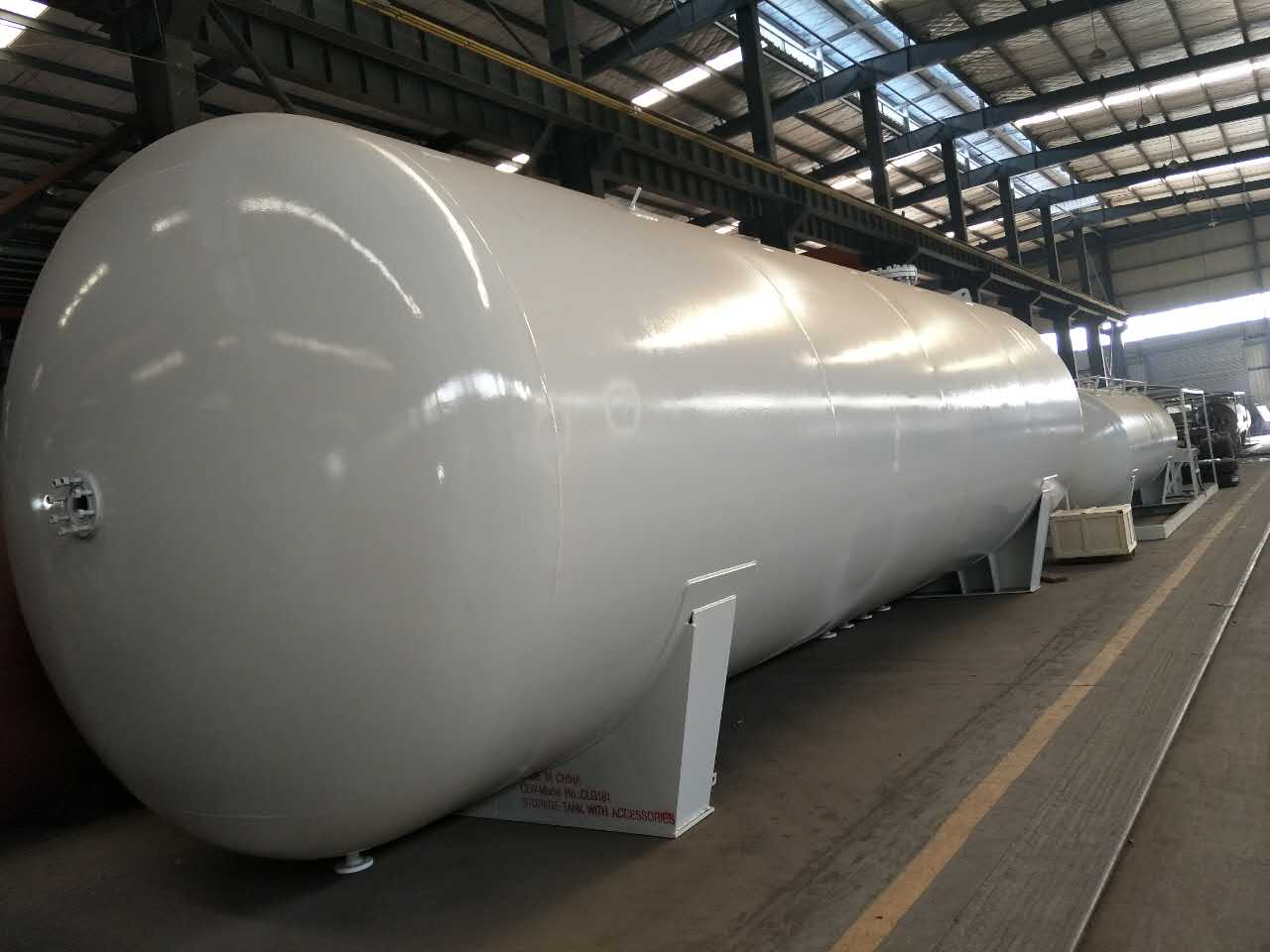

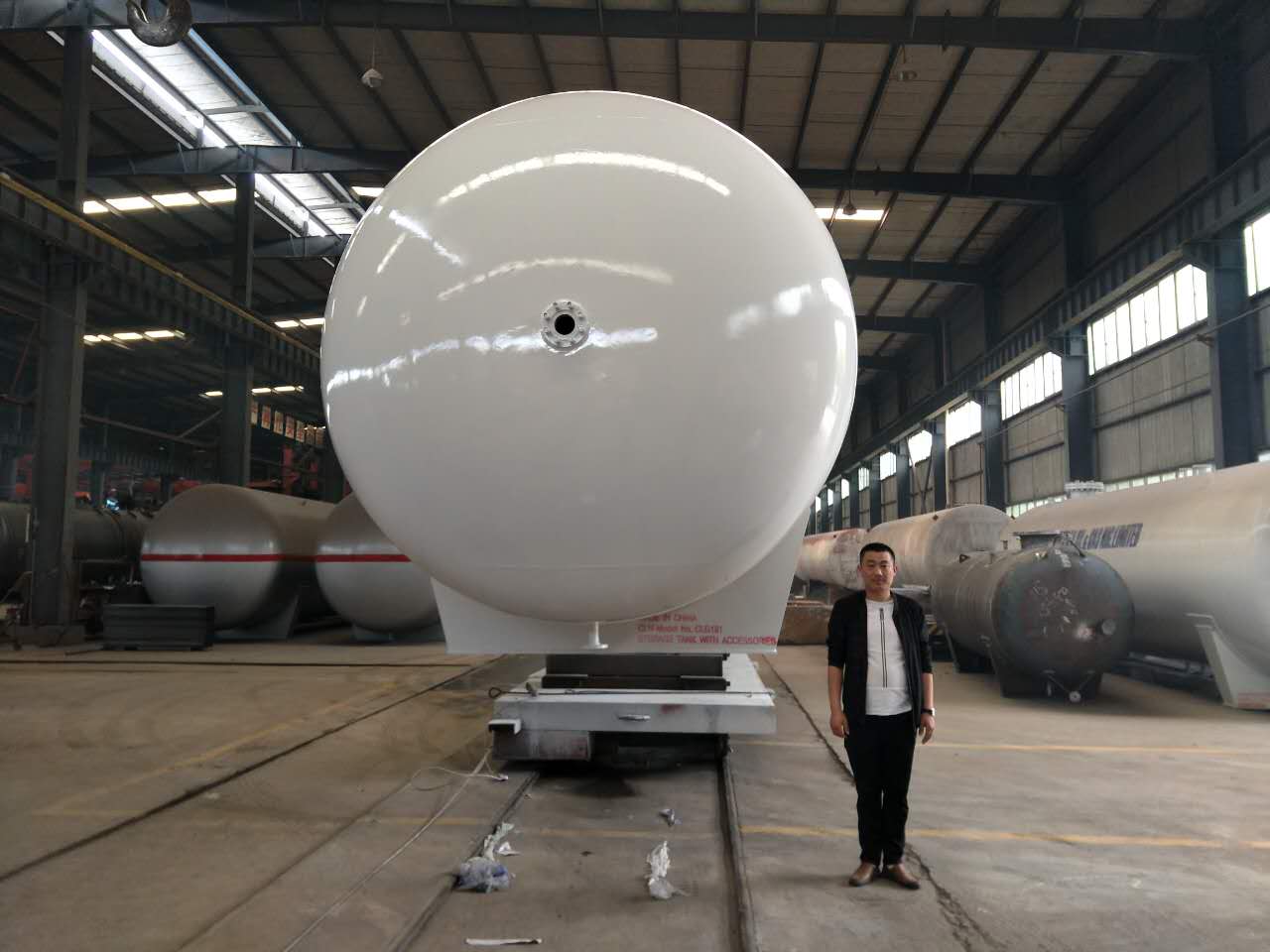

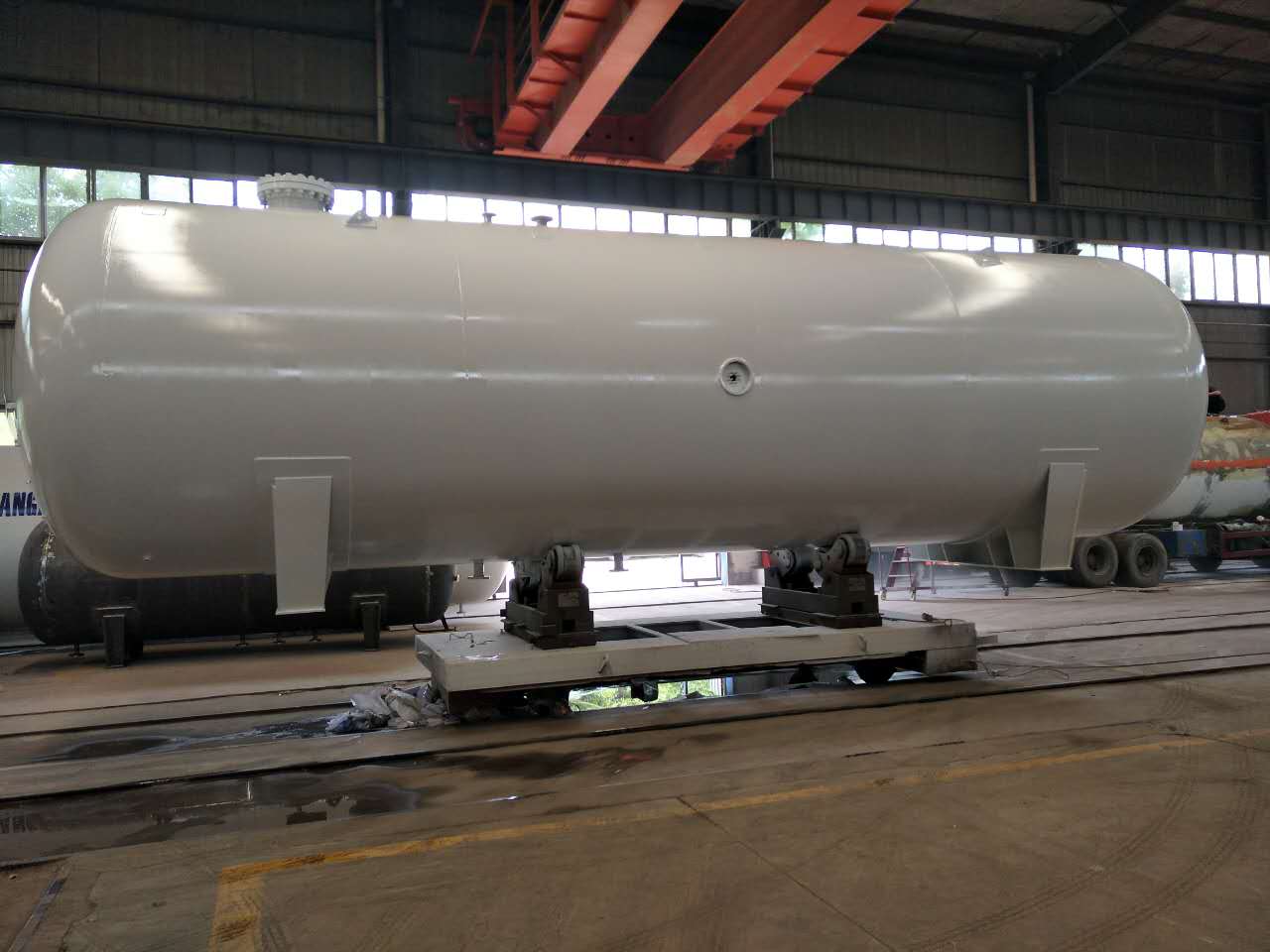

80 Cbm ammonia storage tank for Nigeria
Volume of Tank : 80 CBM (80 000 litters)
Filling Weight: 39520 kg
Tank Weight: 21710 kg
Thickness of Shell: 22 mm
Thickness of dish head:22 mm
Tank Diameter : 3200 mm
External Dimensions ( length x width x height): 10524*3244*3830 mm
Material of Tank and Main Pressure Parts :Q345 R
Filling Medium : Liquefied Petroleum Gas ( liquid ammonia)
Design Pressure: 1.77 MPa
Work Pressure: ≤1.6 MPa
Work Temperature: ≤50 °C
Corrosion Allowance: 2 mm
Medium Density: 420-590 kg / cbm
Certificate : SONCAP / ASME / ISO 9001 / ISO 14001 / OHSAS 18001
Manufacturing Standard : Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China, ASME standard
Safety valve of selection fitting : Safety valve , column magnetic reversible level meter, pressure gauge , thermometer , cut-off valve...
Our company is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 800 kinds of trucks.
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTON and etc.
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place. They mainly from below country: Angola, Algeria, Kenya, Nigeria, Rwanda, Sudan, Zambia, Libya, Congo, Indonesia, Malaysia, Philippines, Vietnam, Turkey, Yemen, Syria.
