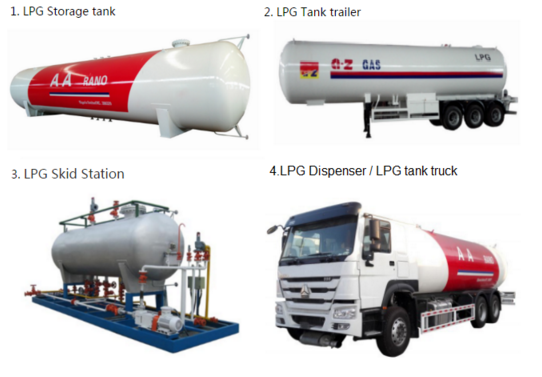

| PRODUCT DISPLAY |
INTRODUCTION:
LPG storage tank is a specialized product for storage of liquefied petroleum gas (LPG). It belongs to special equipment, three kinds of pressure vessel, Q345R material, after inspection, hydraulic pressure test, field inspection of Technical Supervision Bureau, inspection certificate of pressure vessel, external rust removing spray paint and so on.
TECHNICAL PARAMETER:

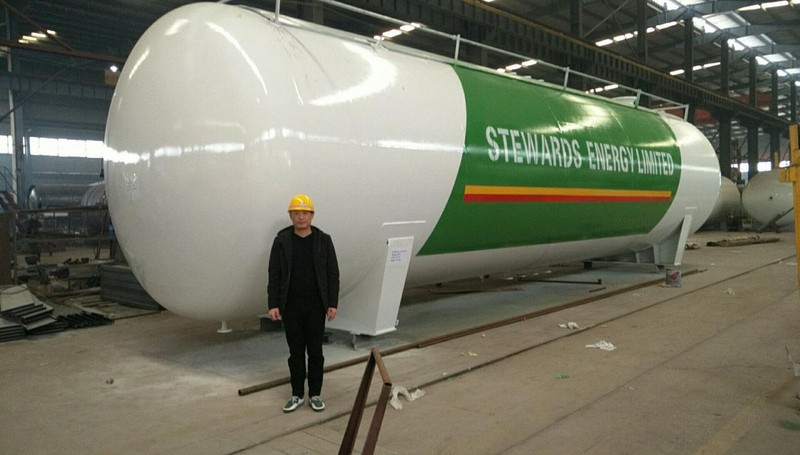

Specification of 100000Liters LPG Storage Tank | ||
Volume of Tank | 100CBM(100,000liters) | |
Filling Weight | 39900 kg | |
Tank Weight | 20410 kg | |
Thickness of Shell (mm) | 16 mm | |
Thickness of End plate (mm) | 18 mm | |
Tank Diameter (mm) | 3100 mm | |
Tank Dimensions (mm) (length x width x height) | 13866*3132*3722mm | |
Material of Tank | Carbon Steel Q345R | |
Filling Medium | Liquefied Petroleum Gas ( Propane) | |
Design Pressure | 1.77 Mpa | |
Test Pressure | 2.22 Mpa | |
Corrosion Allowance | 1 mm | |
Medium Density | 500-580 kg/ cbm | |
Safety Accessory Parts: Safety valve, Cut-off Valve, thermometer, liquid level gauge, pressure gauge | ||
Manhole (As Customer’s Requirement) | ||
Quantity | 1 on the top, DN450/DN500 | |
Safety Valve(As Customer’s Requirement) | ||
Quantity | 1 | |
Location | On the top of tanker | |
Size | DN100 | |
Control System | ||
Cut-off Valves | 2 | |
Liquid level gauge | 1 (Magnetic Level Gauge) | |
Pressure gauge | 1 | |
Temperature gauge | 1 | |
Manhole (As Customer’s Requirement) | ||

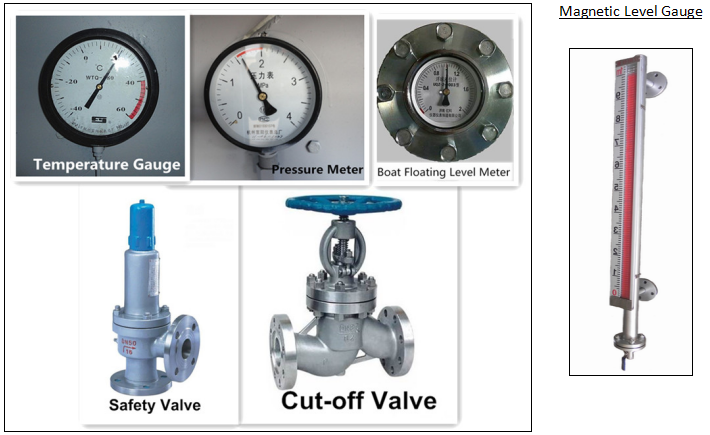

MAIN ACCESSORIES:
