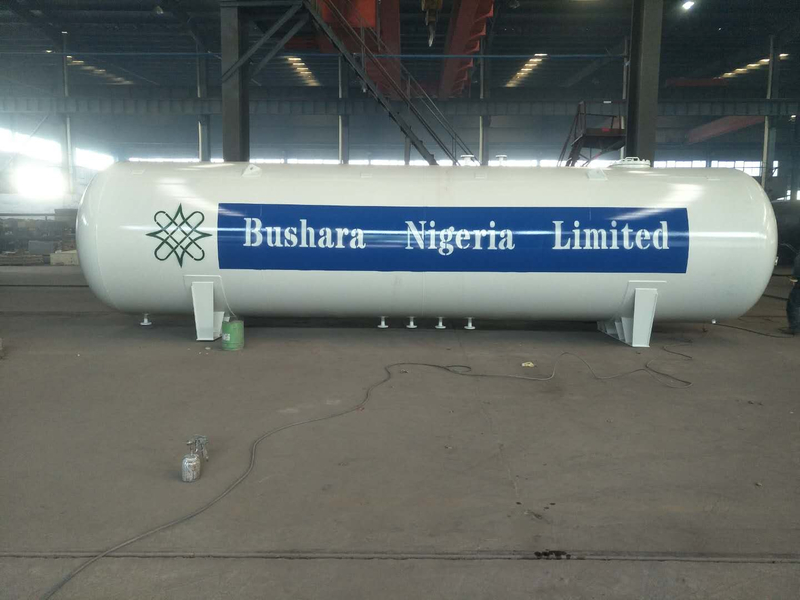

40 Cubic Meter Above Liquid Propane Tank

Interior diameter: 2300 or 2400 mm;
Thickness: End plate 14 mm, body 12 or 14 mm;
Filling capacity: 15960 kg;
Design pressure: 17.7 Bar;
Corrosion tolerance: 1 mm;
Filling medium: propane;
Medium density: 420 kg/cubic meter

Quantity:
  • CLW
  • CLW

LPG, short for liquefied petroleum gas, also referred to as propane or butane, are used as fuel in heating appliances, cooking equipment and  vehicles. As its boiling point is below room temperature, LPG will evaporate quickly at normal temperatures and pressures, and is usually supplied in pressurized steel vessel ,such LPG gas cylinders.


Specification

Volume of Tank (cbm)

40

Overall Dimensions(L*W*H)(mm)

10040*2324*2914

Estimated Tare Weight (kg)

8630 or 9380

Filling load(kg)

15960

Filling medium

Liquefied Petroleum Gas (propane)

Medi Property

Flammable

Design Temperature(℃)

50

Design Pressure(MPa)

1.77

Corrosion Allowance(mm)

1.00

Main parts

Safety Valve

2

Ball Valve

4

Level Gauge  ---ROCHESTER

1

Level Gauge ---RPTO Gauge

1

Emergency cut off valve

2

Thermometer

1

Manhole1, DN as required by customer

 Pressure Gauge

2


You're welcome to contact us for more specific intels.
