10 000 Gallon Liquid Propane Storage Tanks for Sale

10 000 Gallon Liquid Propane Storage Tanks for Sale
Volume of Tank : 45 CBM (45 000 litters)
Filling Weight: 17955 kg
Tank Weight: 10220 kg
Thickness of Shell: 20 mm
Thickness of dish head:16 mm
Tank Diameter : 2700 mm
External Dimensions ( length x width x height): 8342*2728*3318mm
Material of Tank and Main Pressure Parts :Q345 R
Filling Medium : Liquefied Petroleum Gas
Design Pressure: 1.77 MPa
Work Pressure: ≤1.6 MPa
Work Temperature: ≤50 °C
Corrosion Allowance: 2 mm
Medium Density: 420-590 kg / cbm
Certificate : SONCAP / ASME / ISO 9001 / ISO 14001 / OHSAS 18001
Manufacturing Standard : Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China, ASME standard
Safety valve of selection fitting : Safety valve , column magnetic reversible level meter, pressure gauge , thermometer , cut-off valve...

Quantity:
  • clw004
  • clw
Overview of the Products

 10 000 Gallon Liquid Propane Storage Tanks for Sale

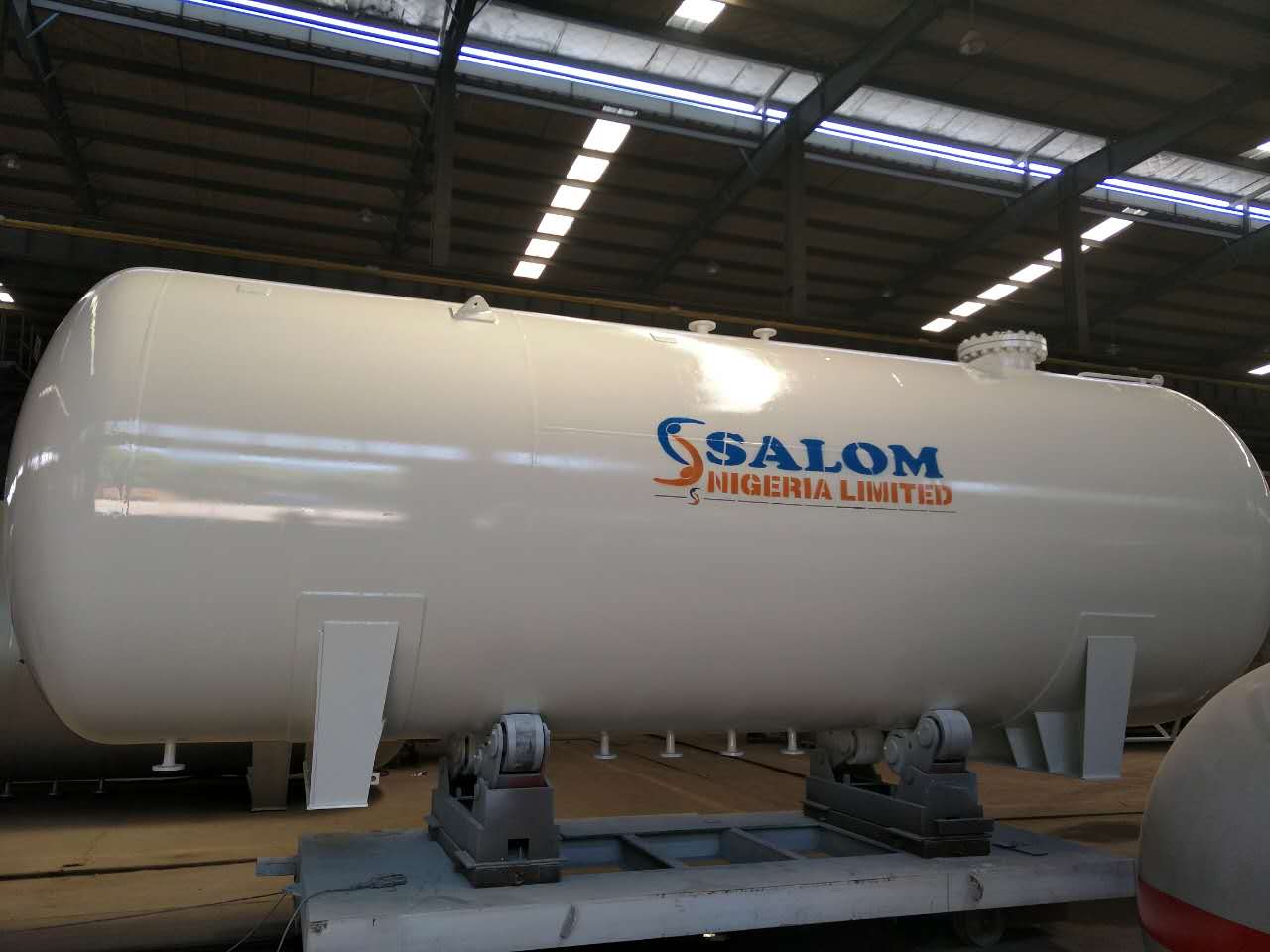

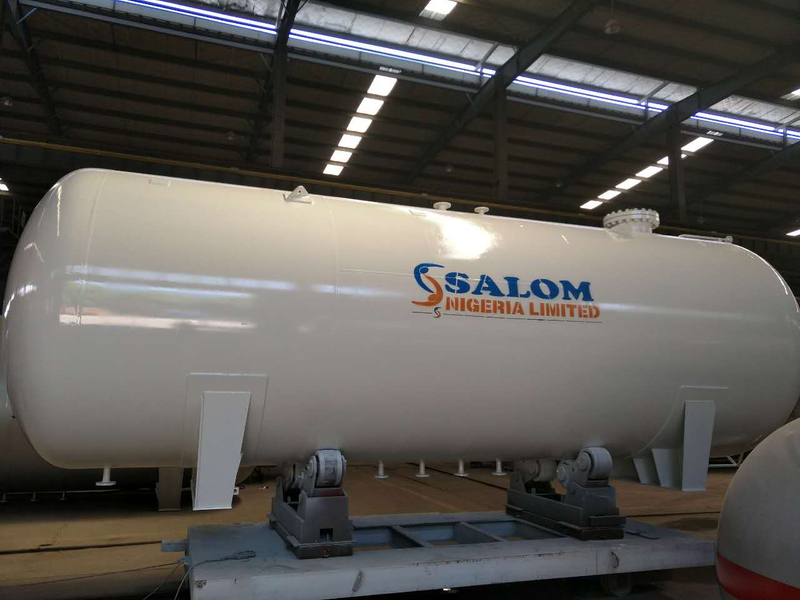

微信图片_20170516154714

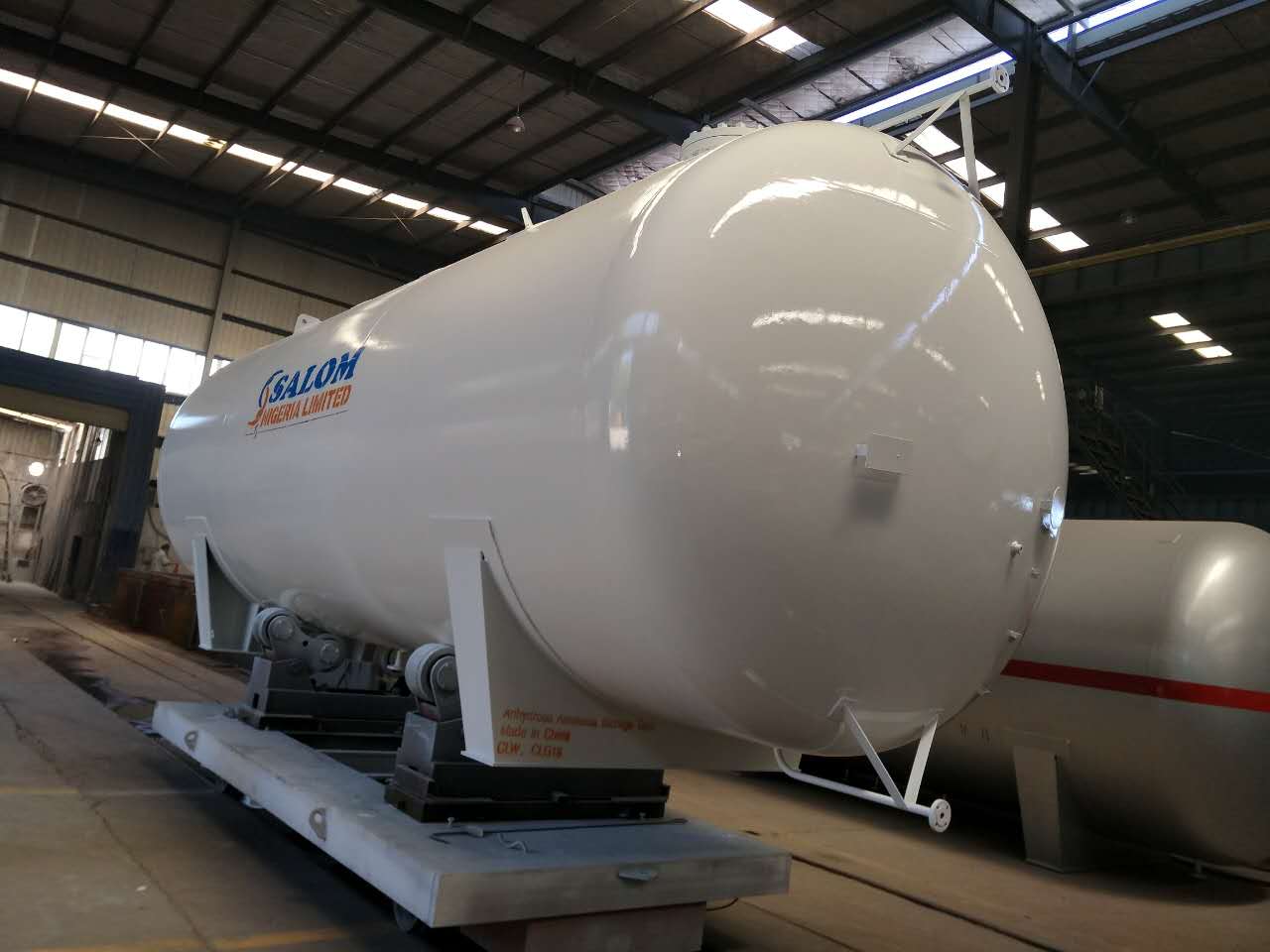

微信图片_20170516154731

Product's Paramater

                                            10 000 Gallon Liquid Propane Storage Tanks for Sale

Volume of Tank

45 CBM (45 000 litters)

Filling Weight

17955 kg

Tank Weight

10220 kg

Thickness of Shell

14 mm

Thickness of dish head

16 mm

Tank Diameter

2700 mm

External Dimensions        ( length x width x height)

8342*2728*3318 mm

Material of Tank and Main Pressure Parts

Q345 R

Filling Medium

Liquefied Petroleum Gas

Design Pressure

1.77 MPa

Work Pressure

1.6 MPa

Work Temperature

50 °C

Corrosion Allowance

2 mm

Medium Density

420-590 kg / cbm

Certificate

SONCAP / ASME / ISO 9001 / ISO 14001 / OHSAS 18001

Manufacturing Standard

Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China, ASME standard

Safety valve of selection fitting

Safety valve , column magnetic reversible level meter, pressure gauge , thermometer , cut-off valve...

Packaging & Shipping


1, Naked or waxed.

2, Delivery time: 30 days after receiving payment in advance.

3. By RORO or Bulk ship.
