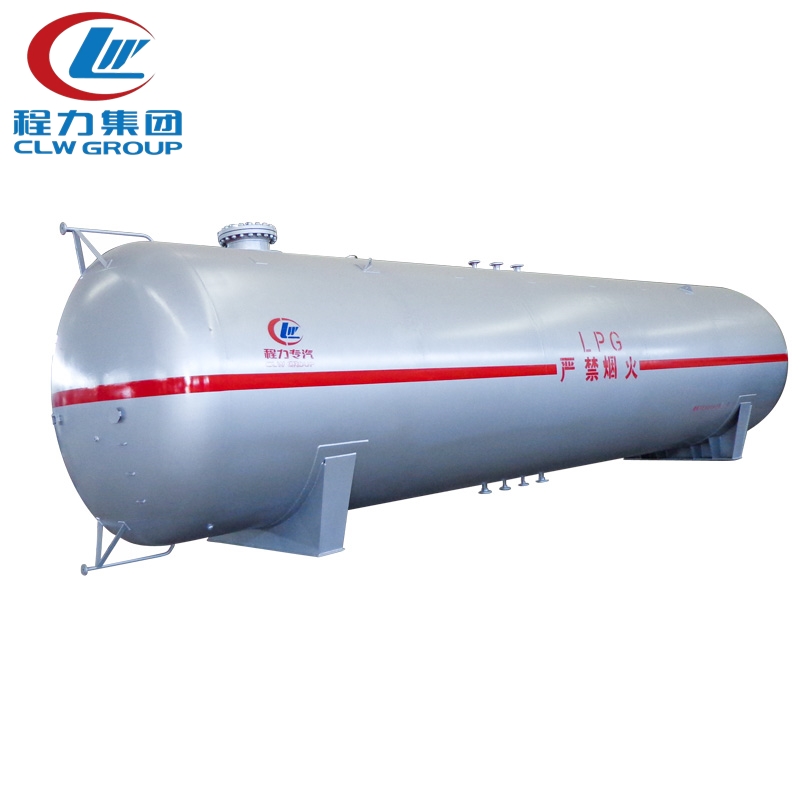

High Quality 80cbm Liquid Propane Storage Tanks for Sale
Technical parameter
Specification of 80CBM LPG Storage Tanker | ||
Volume of Tank | 80CBM | |
Filling Weight (kg) | 31920 | |
Tank Weight (kg) | 17000 | |
Thickness (mm) | Tanker body: 16 | |
End plate:18 | ||
Tank Diameter (mm) | 3100 | |
Tank Dimensions (mm) (length x width x height) | 11166 X 3132 X3722 | |
Major Materials | Q345R | |
Medium | Propane | |
Fluid Property | Flammable | |
Design Pressure(MPa) | 1.77 | |
Density (kg/m3) | 420 | |
Corrosion Allowance(mm) | 1 | |
Manhole (As Customer’s Requirement) | ||
Quantity | 1 on the top, DN450/DN500 | |
Safety Valve(As Customer’s Requirement) | ||
Quantity | 1 | |
Location | On the top of tanker | |
Size | DN100 | |
Control System | ||
Cut-off Valves | 2 | |
Liquid level gauge | 1 (Magnetic Level Gauge) | |
Pressure gauge | 1 | |
Temperature gauge | 1 |

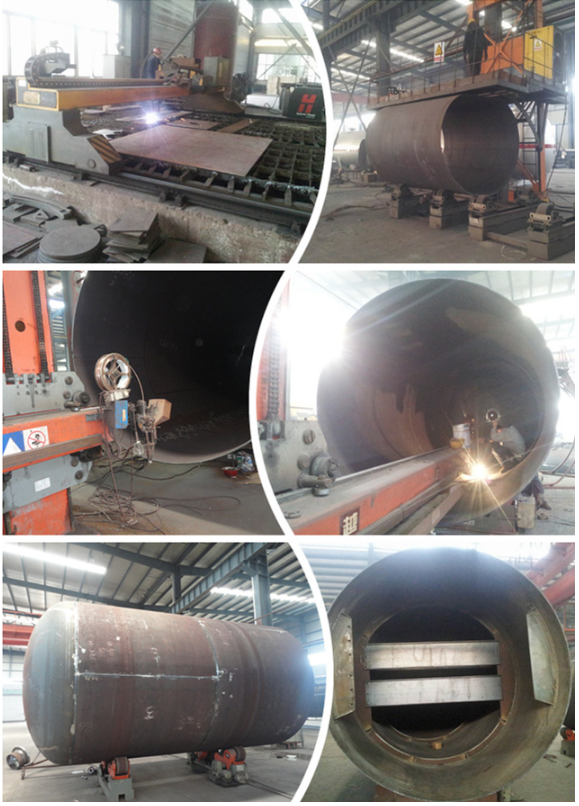

Procession for lpg gas tanker
1.We have the LPG Semi Trailer from 40CBM,50CBM,56CBM,58.5CBM,59.52CBM,60CBM
2.We can also provide LPG storage tank ranged from 5CBM, 8CBM,20CBM,50CBM,80CBM,100CBM 120CBM, 150CBM, 200CBM, both on ground ones and underground ones.
3.We have the LPG Filling Station from 5CBM, 10CBM, 15CBM,20CBM,25CBM,40CBM,50CBM
4.We have the LPG Bobtail truck from 3CBM, 5.5CBM,10CBM,12CBM,20CBM,25CBM.
5.We have the LPG Delivery truck from 3CBM, 5CBM,10CBM,12CBM,20CBM,25CBM, 30CBM,35CBM.
About our company
ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province,China. SuiZhou is near to wuhan, Xiangfan and Shiyan,with these cities, there is a Golden Car Manufacturing hallway along the 318 highway. Among that, SuiZhou is famous as the capital of Chinese special automobile manufactory.
Since being founded in 1998, ChengLi has continually worked to improve its production processes and production tools. Qualified personnel ensure the highest standards of quality control in the manufacture of the principal components and the final assembly. Covering an area of 8 hectares more than 5000 vehicles are produced each year. Our company has independent export right, the product had delivery to many countries around the word. Take 2008 for example, the amount of export reach 2000 units. The registered Labels CLW is well known in these years.
Based on high quality and advanced technology, the leading varieties include more than 200 types of trucks such as water truck, garbage truck, fecal and sewage suction truck,refuse compactor, fuel tank, aerial platform, truck with crane, dump truck, van truck, trailers, fire-fighting truck, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, LPG tank, etc. All products have passed the ISO9001-2000 and t 3C(China Compulsory Certification) standard.
Our service:
1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...
2. Pressure Vessel Manufacturing: LPG, Liquid Ammonia, Dimethy-ether, Isobutane, Propylene
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you receive the
goods, test them, and give us a feedback. If you have any questions , contact with us, we will provide technique solutions for you.
