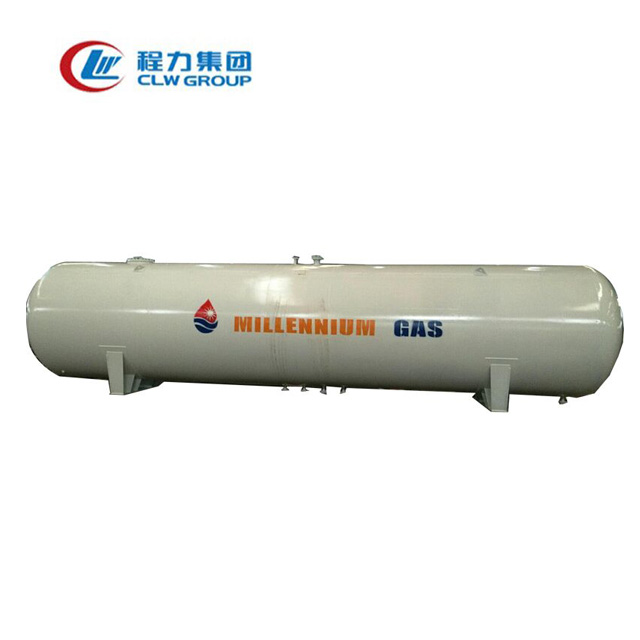

120 Cubic Meters Liquid Propane Storage Tanks for Sale
Technical Parameter
Specification of 120CBM LPG Storage Tanker | ||
Volume of Tank | 120CBM | |
Filling Weight (kg) | 47880 | |
Tank Weight (kg) | 24960 | |
Thickness (mm) | Tanker body: 18 | |
End plate:20 | ||
Tank Diameter (mm) | 3400 | |
Tank Dimensions (mm) (length x width x height) | 13820 X 3436 X4026 | |
Major Materials | Q345R | |
Medium | Propane | |
Fluid Property | Flammable | |
Design Pressure(MPa) | 1.77 | |
Density (kg/m3) | 420 | |
Corrosion Allowance(mm) | 1 | |
Manhole (As Customer’s Requirement) | ||
Quantity | 1 on the top, DN450/DN500 | |
Safety Valve(As Customer’s Requirement) | ||
Quantity | 1 | |
Location | On the top of tanker | |
Size | DN100 | |
Control System | ||
Cut-off Valves | 2 | |
Liquid level gauge | 1 (Magnetic Level Gauge) | |
Pressure gauge | 1 | |
Temperature gauge | 1 | |

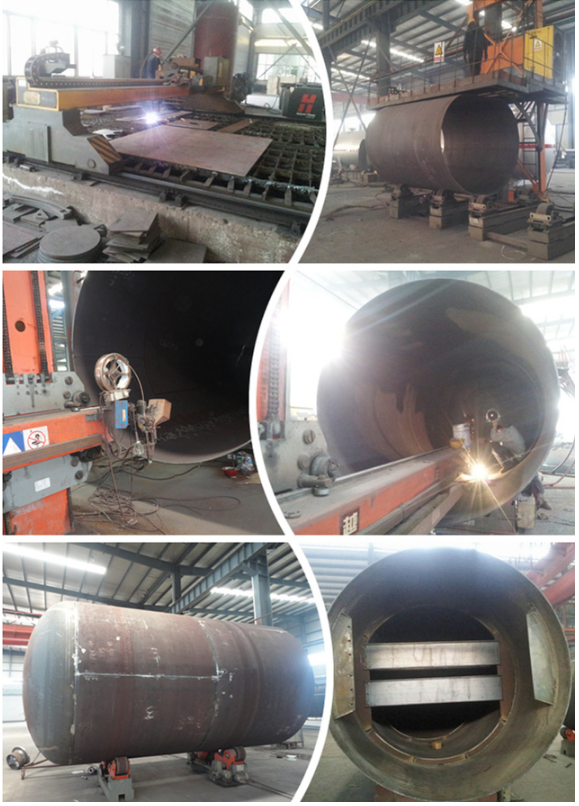

Procession for lpg gas tanker
1.We have the LPG Semi Trailer from 40CBM,50CBM,56CBM,58.5CBM,59.52CBM,60CBM

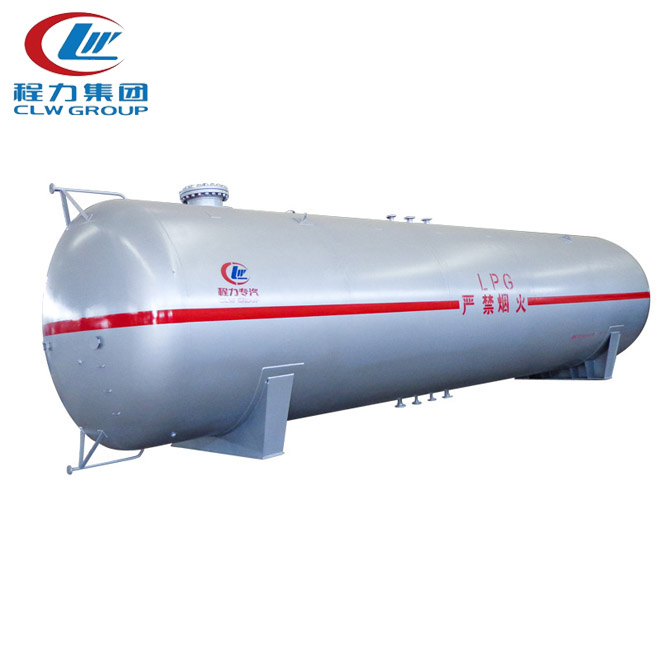

2.We can also provide LPG storage tank ranged from 5CBM, 8CBM,20CBM,50CBM,80CBM,100CBM 120CBM, 150CBM, 200CBM, both on ground ones and underground ones.
3.We have the LPG Filling Station from 5CBM, 10CBM, 15CBM,20CBM,25CBM,40CBM,50CBM
4.We have the LPG Bobtail truck from 3CBM, 5.5CBM,10CBM,12CBM,20CBM,25CBM.
5.We have the LPG Delivery truck from 3CBM, 5CBM,10CBM,12CBM,20CBM,25CBM, 30CBM,35CBM.
About our company
ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province,China. SuiZhou is near to wuhan, Xiangfan and Shiyan,with these cities, there is a Golden Car Manufacturing hallway along the 318 highway. Among that, SuiZhou is famous as the capital of Chinese special automobile manufactory.
Our factory advantages
1. More than 15 years' experience as a manufacturer
2. Competitive price and excellent quality
3. CCC, ISO, BV, ASME certification
4. Perfect after-sale service
5. Customized products are available
6. 100 senior welder and 15 senior engineers
7. Export covering More than 50 countries and regions
Our service：
1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...
2. Pressure Vessel Manufacturing: LPG, Liquid Ammonia, Dimethy-ether, Isobutane, Propylene
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you receive the
goods, test them, and give us a feedback. If you have any questions , contact with us, we will provide technique solutions for you.
