| Quantity: | |
|---|---|
CLWLPG200
CLW

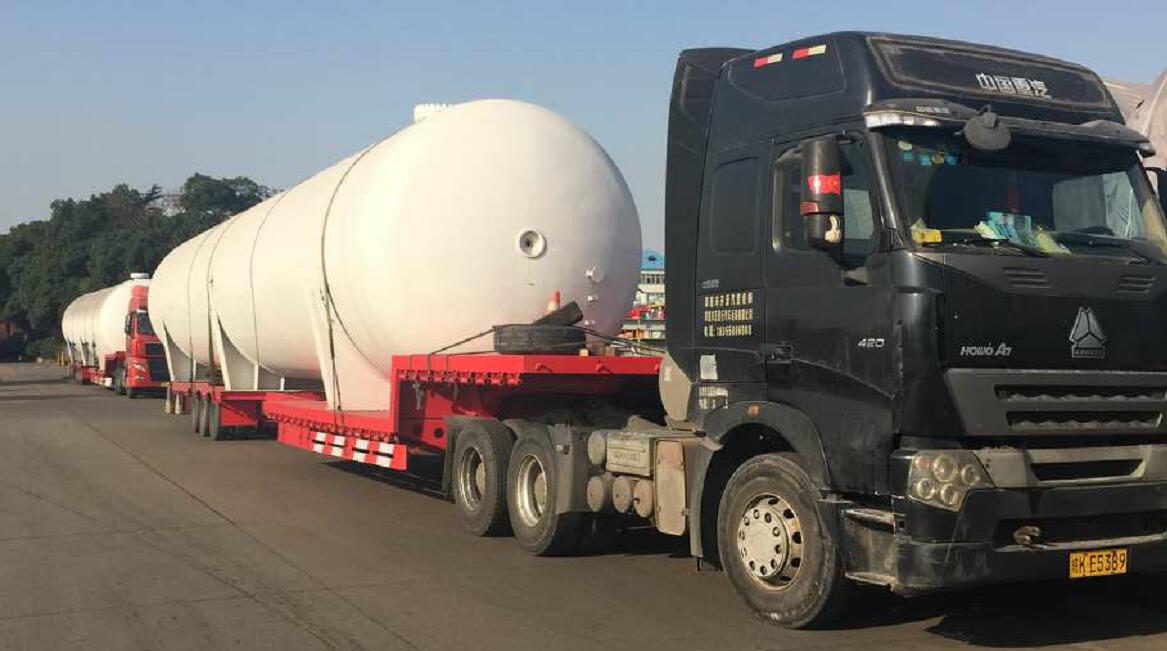

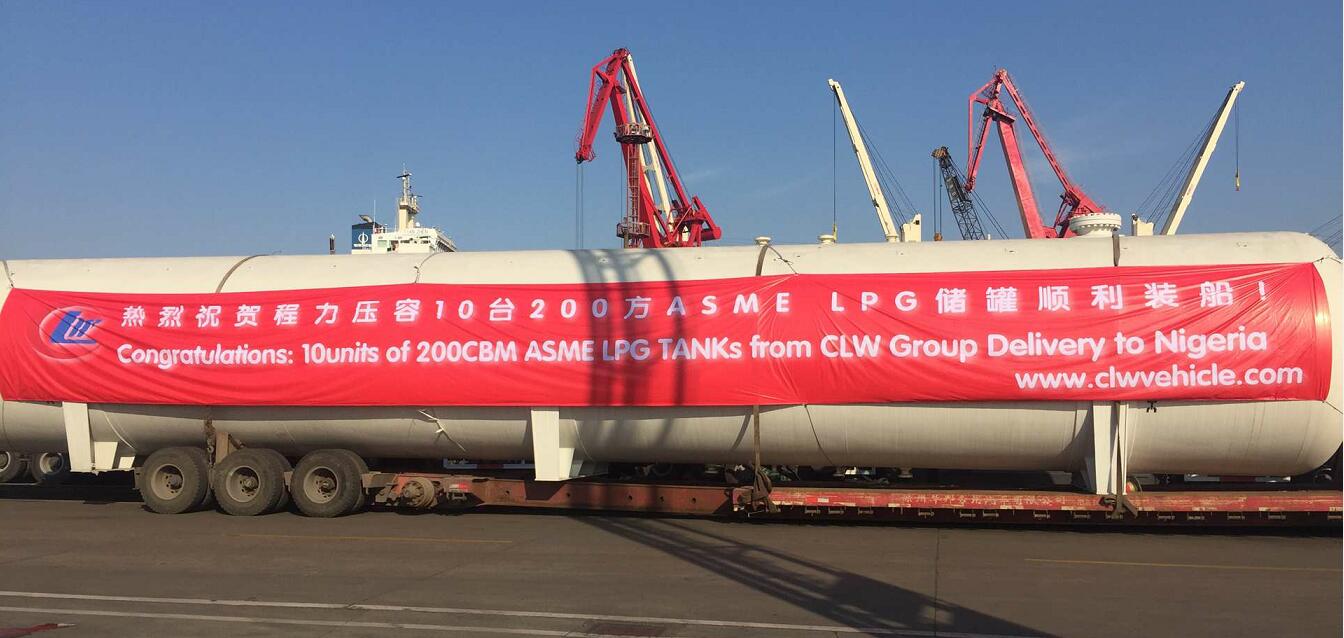

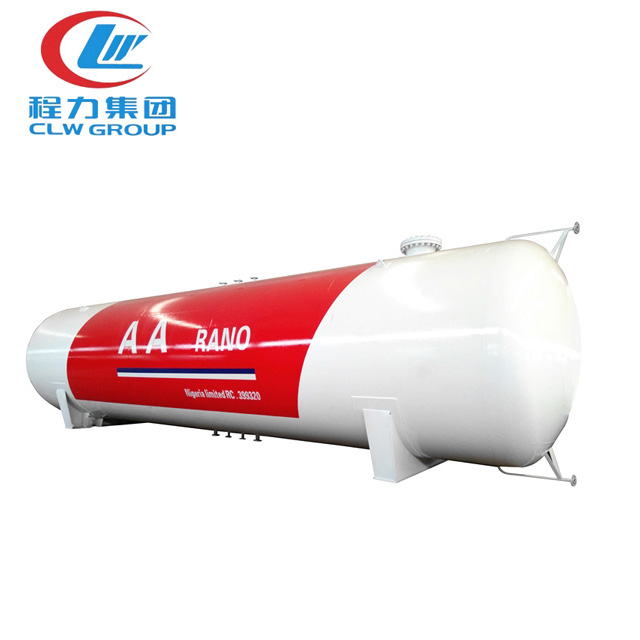

200cbm large volume LPG tank is used for LPG gas storage and refilling gas plant.
Technique Parameter for 200,000l (100tons) lpg gas tanker
| Item No. | Parameters |
| Volume of Tank (cbm) | 200 |
| Tare Weight (kg) | 52000 kg |
| Filling Capacity (kg) | 98100kg |
| Thickness of Shell (mm) | 24 |
| Thickness of Endplate (mm) | 26 |
| tank cylinder diameter (mm) | 3400 |
| External Dimensions (mm) (length×width×height) | 22652*3448*4038 |
| Material of Tank and Main Pressure Parts | SA516M |
| Filling Medium | Liquefied Petroleum Gas |
| Design Pressure | 1.77MPa (256.65 Psi) |
| Corrosion Allowance | 1mm |
| Medium Density | 545 kg/cbm |

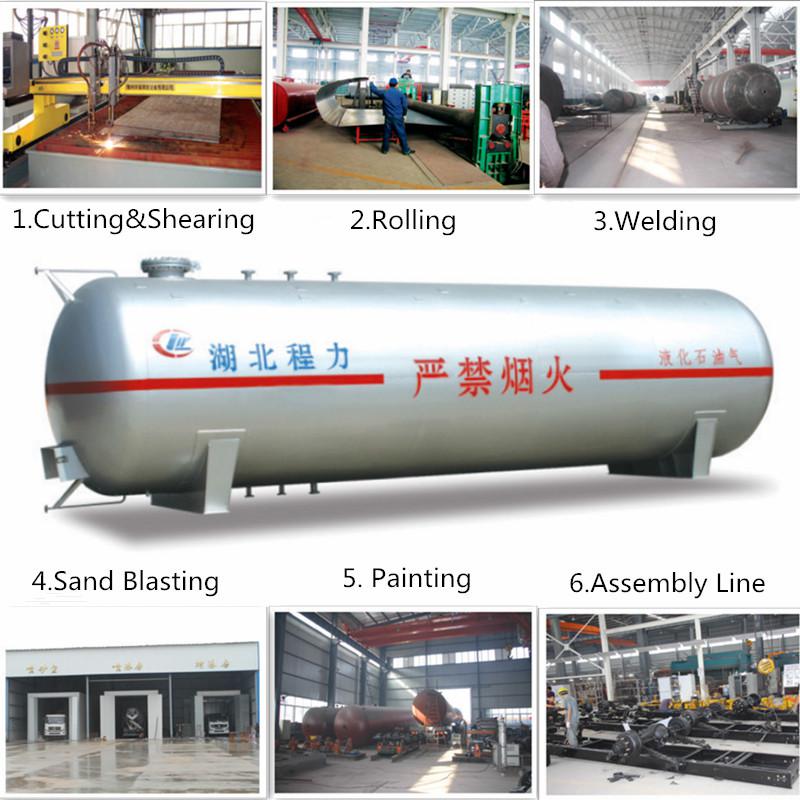

Production Process
Company Information
Factory Advantages
1) More than 15 years’ experience as a manufacturer
2) Competitive Price and Excellent quality
3) CCC, ISO, BV, ASME certification
4) Perfect after-sale service
5) Business range covers more than 50 countries and regions
6) 300 kinds of trucks and trailers
7) 100 senior welder and 15 senior engineers
8) Good cooperation with 30% regular customers
9) Annual production value tops 240,000,000 US dollars per year
