China Facory 100 Cbm Ammonia Storage Tank for Nigeria And Namibia

100 Cbm ammonia storage tank for Nigeria
Volume of Tank : 100 CBM (100 000 litters)
Filling Weight: 49400 kg
Tank Weight: 26010 kg
Thickness of Shell: 20 mm
Thickness of dish head:20 mm
Tank Diameter : 3400 mm
External Dimensions ( length x width x height): 13820*3436*4026 mm
Material of Tank and Main Pressure Parts :Q345 R
Filling Medium : Liquefied Petroleum Gas ( liquid ammonia)
Design Pressure: 1.77 MPa
Work Pressure: ≤1.6 MPa
Work Temperature: ≤50 °C
Corrosion Allowance: 2 mm
Medium Density: 420-590 kg / cbm
Certificate : SONCAP / ASME / ISO 9001 / ISO 14001 / OHSAS 18001
Manufacturing Standard : Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China, ASME standard
Safety valve of selection fitting : Safety valve , column magnetic reversible level meter, pressure gauge , thermometer , cut-off valve...

Quantity:
  • clw003
  • clw
Overview of the Products

 China Facory 100 Cbm  Ammonia Storage Tank for Nigeria And Namibia

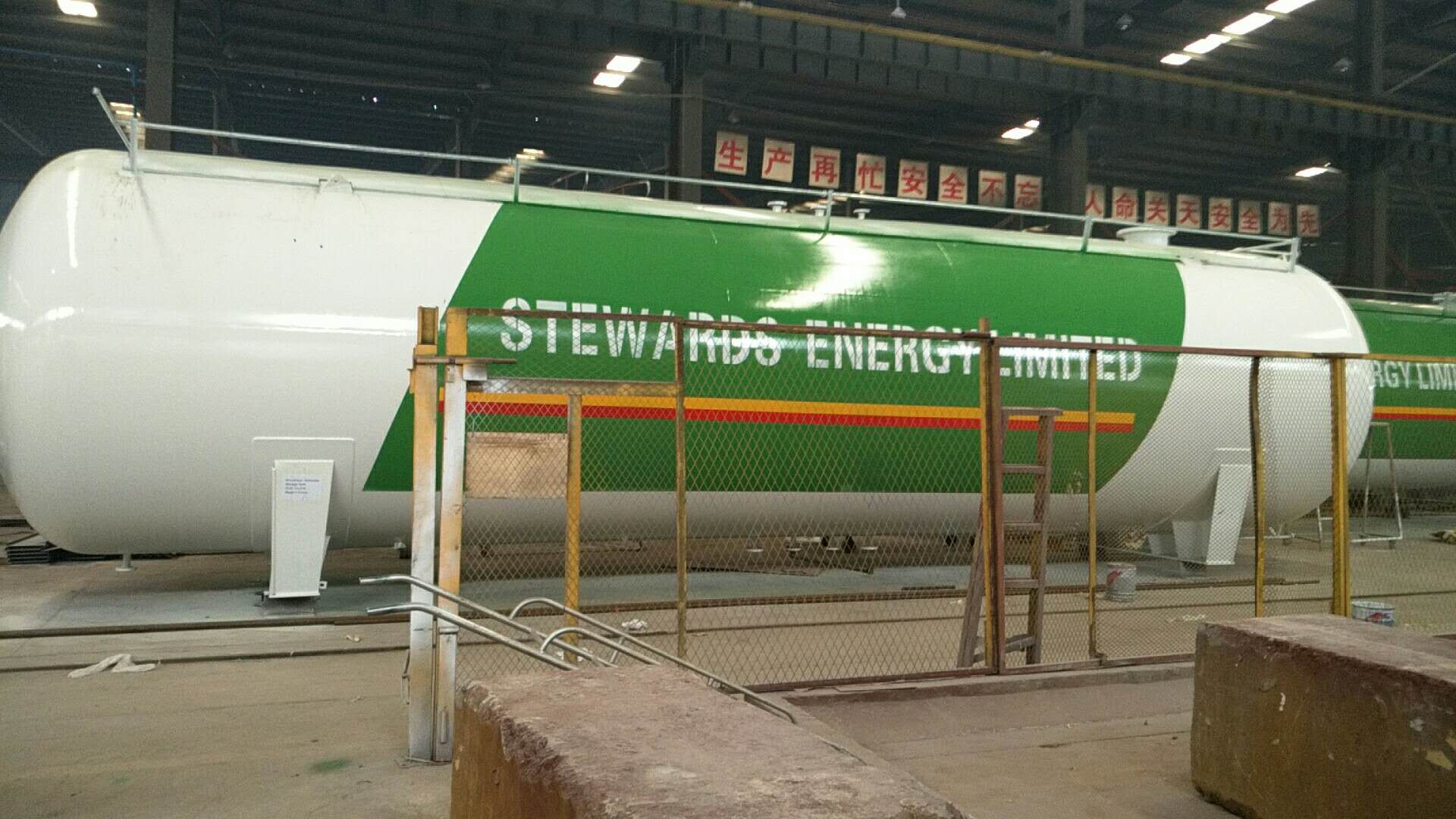

ammonia storage tank 5


ammonia storage tank

Product's Paramater

                                            100 000 litters (100 cbm) LPG TANKER DIMENSIONS

Volume of Tank

100 CBM (100 000 litters)

Filling Weight

49400 kg

Tank Weight

260100 kg

Thickness of Shell

20 mm

Thickness of dish head

20 mm

Tank Diameter

3400 mm

External Dimensions        ( length x width x height)

167400*2840*3420 mm

Material of Tank and Main Pressure Parts

Q345 R

Filling Medium

Liquefied Petroleum Gas ( liquid ammonia)

Design Pressure

1.77 MPa

Work Pressure

1.6 MPa

Work Temperature

50 °C

Corrosion Allowance

2 mm

Medium Density

420-590 kg / cbm

Certificate

SONCAP / ASME / ISO 9001 / ISO 14001 / OHSAS 18001

Manufacturing Standard

Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China, ASME standard

Safety valve of selection fitting

Safety valve , column magnetic reversible level meter, pressure gauge , thermometer , cut-off valve...

Packaging & Shipping


1, Naked or waxed.

2, Delivery time: 30 days after receiving payment in advance.

3. By RORO or Bulk ship.

delivery by cart


Our Services

1. All trucks and trailers are new and be customized to meet all your requirement.

2. All trucks and trailers are with 12 months quality guarantee.

3. CKD and SKD are available.

4. Technical support are provided.


Company Information

Our company is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 800 kinds of trucks.
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTON and etc.
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place. They mainly from below country: Angola, Algeria, Kenya, Nigeria, Rwanda, Sudan, Zambia, Libya, Congo, Indonesia, Malaysia, Philippines, Vietnam, Turkey, Yemen, Syria.

工厂照片-4-1






CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
