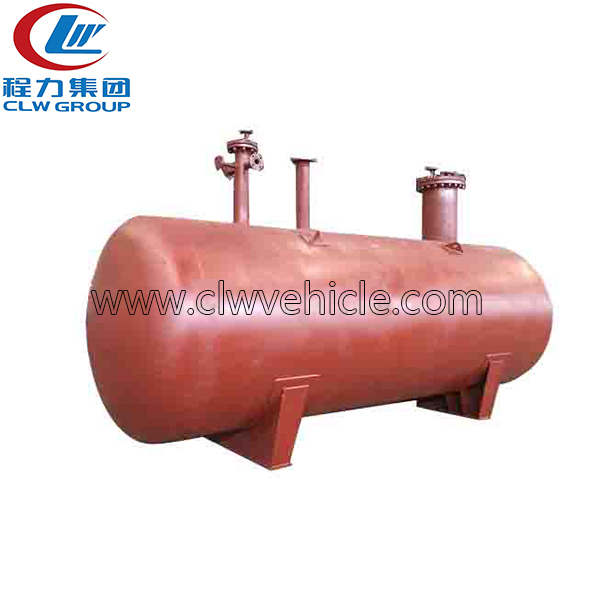

50cbm Liquid Propane Storage Tanks for Sale
Specification of 50CBM LPG Storage Tanker | ||
Volume of Tank | 50CBM | |
Filling Weight (kg) | 19950 | |
Tank Weight (kg) | 10910 | |
Thickness (mm) | Tanker body: 14 | |
End plate:16 | ||
Tank Diameter (mm) | 2600 | |
Tank Dimensions (mm) (length x width x height) | 9912 X 2628 X3218 | |
Major Materials | Q345R | |
Medium | Propane | |
Fluid Property | Flammable | |
Design Pressure(MPa) | 1.77 | |
Density (kg/m3) | 420 | |
Corrosion Allowance(mm) | 1 | |
Manhole (As Customer’s Requirement) | ||
Quantity | 1 on the top, DN450/DN500 | |
Safety Valve(As Customer’s Requirement) | ||
Quantity | 1 | |
Location | On the top of tanker | |
Size | DN100 | |
Control System | ||
Cut-off Valves | 2 | |
Liquid level gauge | 1 (Magnetic Level Gauge) | |
Pressure gauge | 1 | |
Temperature gauge | 1 | |

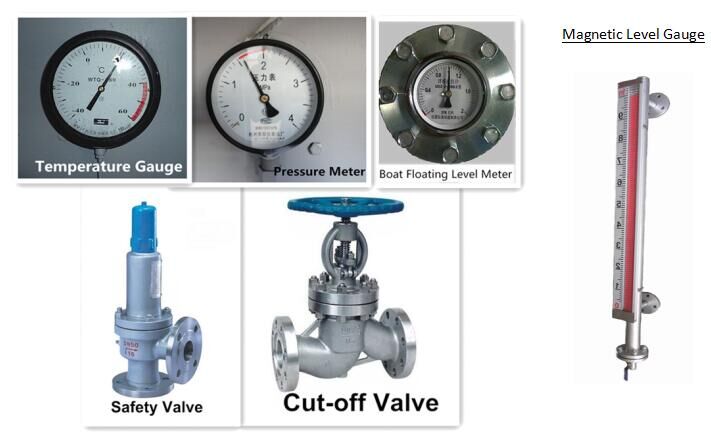

Key parts
Our advantage
1. More than 15 years' experience as a manufacturer
2. Competitive Price and Excellent Quality
3. CCC, ISO, BV, ASME certification
4. Perfect after-sale service
5. Trucks covering more than 50 countries and regions
6. 300 kinds of trucks and trailers
7. 100 Senior welder and 15 senior engineers
8. Good cooperation with 30% regular customers
9. Annual production value topped 240,000,000 US dollars per year
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
