| PRODUCT DISPLAY |
INTRODUCTION:

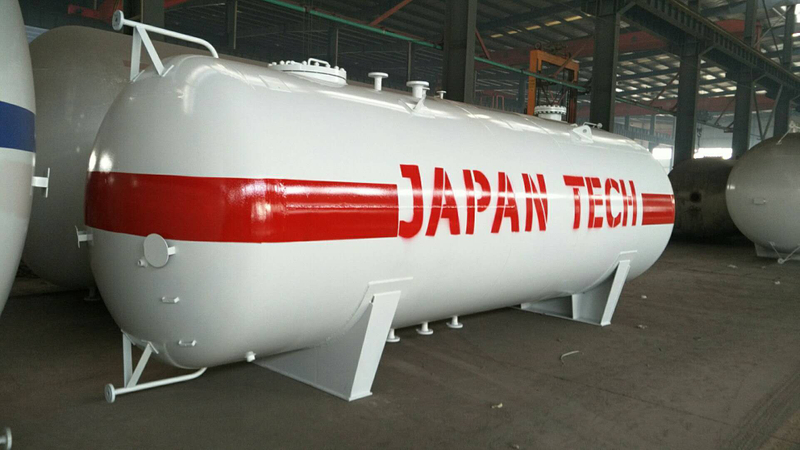

LPG storage tank is a specialized product for storage of liquefied petroleum gas (LPG). It belongs to special equipment, three kinds of pressure vessel, Q345R material, after inspection, hydraulic pressure test, field inspection of Technical Supervision Bureau, inspection certificate of pressure vessel, external rust removing spray paint and so on.
TECHNICAL PARAMETER:
LPG Storage Tanker Specification of 20CBM | ||
Volume of Tank | 20CBM | |
Filling Weight (kg) | 7980 | |
Tank Weight (kg) | 5080 | |
Thickness (mm) | Tanker body: 12 | |
End plate:14 | ||
Tank Diameter (mm) | 2200 | |
Tank Dimensions (mm) (length x width x height) | 5608*2224*2814mm | |
Major Materials | Carbon Steel Q345R | |
Medium | Propane | |
Fluid Property | Flammable | |
Design Pressure(MPa) | 1.77 | |
test pressure (Mpa) | 2.22 | |
Density (kg/m3) | 420 -590kg/ cbm | |
Corrosion Allowance(mm) | 1 | |
Life expectation(year) | 15 | |
Manhole (As Customer’s Requirement) | ||
Quantity | 1 on the top, DN450/DN500 | |
Safety Valve(As Customer’s Requirement) | ||
Quantity | 1 | |
Location | On the top of tanker | |
Size | DN100 | |
Control System | ||
Cut-off Valves | 2 | |
Liquid level gauge | 1 (Magnetic Level Gauge) | |
Pressure gauge | 1 | |
Temperature gauge | 1 | |
MAIN ACCESSORIES:
