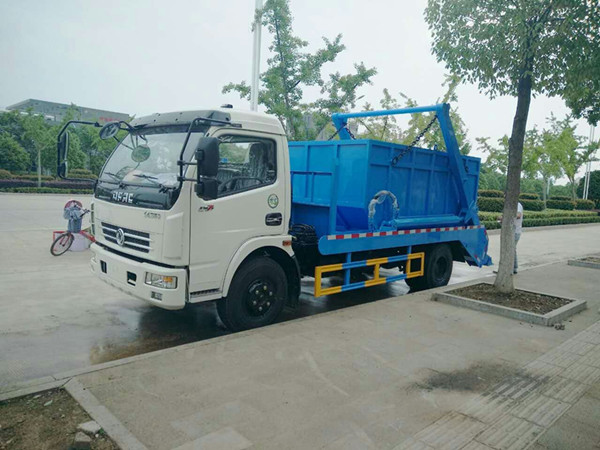

DongFeng 4x2 6m3 Roll Container Swing Arm Garbage Truck

A skip loader waste truck is an all-purpose lift-off container truck intended for collection and disposal of large household rubbish and construction waste with the help of the body, as well as for transportation and dumping of various bulk cargoes.
Availability:
Quantity:
  • CLW

  • CLW


DongFeng 4x2 6m3 Roll Container Swing Arm Garbage Truck


A skip loader waste truck is an all-purpose lift-off container truck intended for collection and disposal of large household rubbish and construction waste with the help of the body, as well as for transportation and dumping of various bulk cargoes.


Condition

New condition/Left and Right hand drive/4x2

Chassis

Brand

Dongfeng

Curb weight(kg)

6000

Wheelbase(mm)

3300

Dimensions(mm)

5995×2480×3100

Overhang (front/rear) (mm)

1250/2340

Wheel track (front/rear) (mm)

1940/1860

Approach/Departure angle(°)

30/17

Axle Load(kg)

3125/9325

Max. driving speed(km/h)

85

Clutch

Reinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake                                                                                     Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Number

6pcs with one spare tire

Specifications

10.00-20

Gear box

Manual type, 6 Forwards & 1 Reverse

Cab

It can accommodate three peopleWith Air conditioner

Engine

Brand

Dongfeng Cummins

Displacement(ml)

5900 ml

Cylinder quantity(pcs)

6 pcs

Power(kw)

140 kw

Horsepower(HP)

95 HP

Fuel type

Diesel

Emission standard

Euro 3

Upper

Garbage Tank

Tank material

Q235 Carbon steel

Tank volume(cbm)

10.0 cbm

Max. Loading capacity(tons)

6.0 tons

Button thickness(mm)

4.0 mm

Side plate thickness(mm)

3.0 mm

Remarks

1. 4pcs hydraulic oil cylinder

2. 2pcs hydraulic loading leg

3. Swing arm rack and iron chain

4. The color of the tank is optional



201711170120171120012017112001
