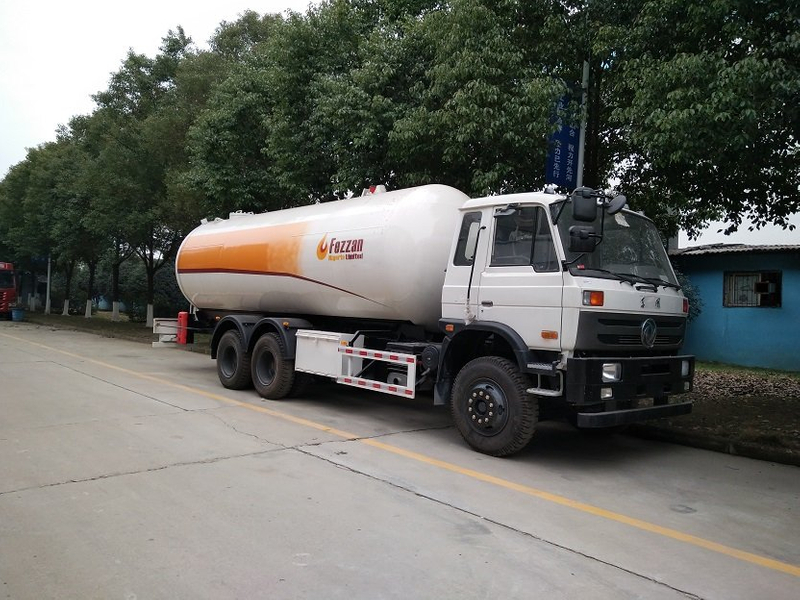

Dongfeng 10-Wheel 6X4 20000Liters 20CBM 10MT 10Tons LPG Tank Truck

Cabin:2~3 persons,with A/C;
Engine:210HP,Cummins
Tire:10R22.5 or 10.00R20
Tank thickness:10mm

Quantity:
  • CLW
  • CLW

Item No.

Parameters

Overall Dimension

9500*2462*3450mm

Driving Model

Left hand drive

Gross Vehicle Weight

22785kg

Curb Weight

10420 kg

Payload

10000kg

Wheel Base

4350+1300 mm

Front/rear Tread

1245/2805 mm

Approach/Departure Angle

27/12 degree

Front Axle

7000kg

Rear Axle

15000*2 kg

Engine

Cummins engine, 4 in-line cylinder

Engine horsepower

210 HP EUROIII

Displacement

5900mL (Diesel)

Max Driving Speed

80 km/h

Cabin

2 Passenger allowed, Left Hand Driving,with A/C

Tire

10R22.5 (11 pieces)

LPG tank


Volume:

20cbm

Tank material:

Q345R

Tank diameter:

2050mm

Tank thickness:

10mm

Tank length:

6445mm

Filling gas

Propane(LPG)

Design Pressure:

1.61Mpa

Accessory

Safety Valve

No.

1

Type

A412F-2.5-16

Nominal pressure

2.5Mpa

Opening pressure

1.86-1.94Mpa

Closing pressure

>1.67Mpa

Tool Box

1

Valve Box

1

Thermometer

1

Pressure Gauge

1

Emergency Valve

1

Fender

Steel

Fire Extinguisher

2

Anti-static Tape

1

Painting

As required

Standard

Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels

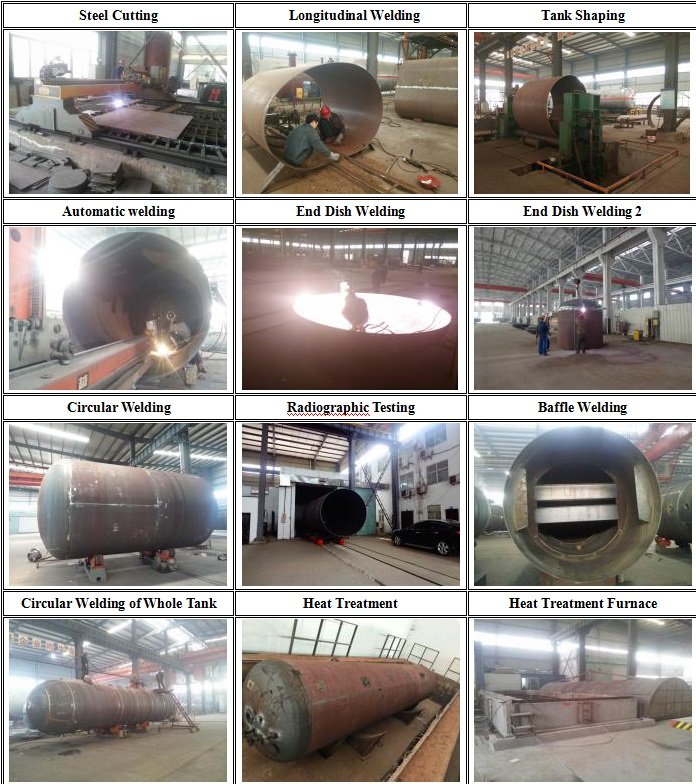

PRODUCTION PROCESS 01.jpg

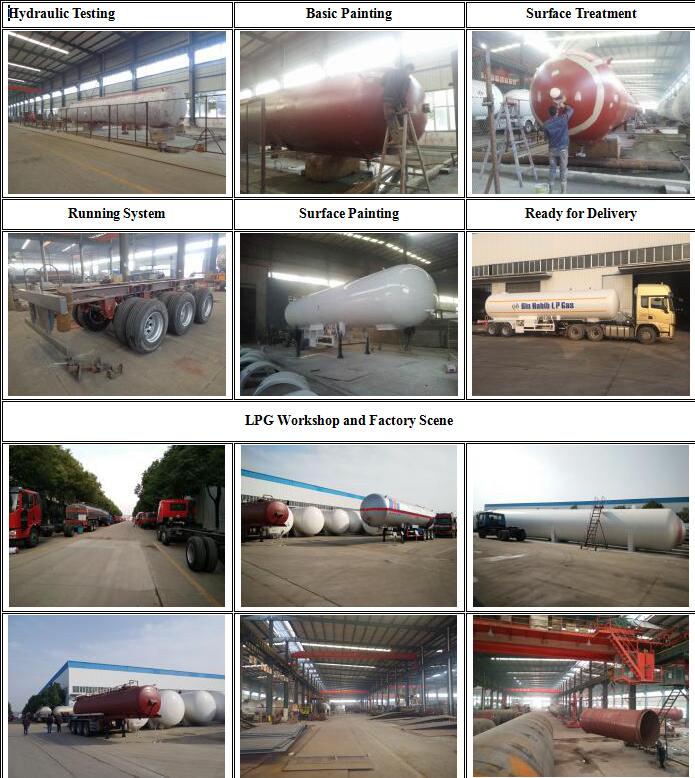

PRODUCTION PROCESS 02.jpg
