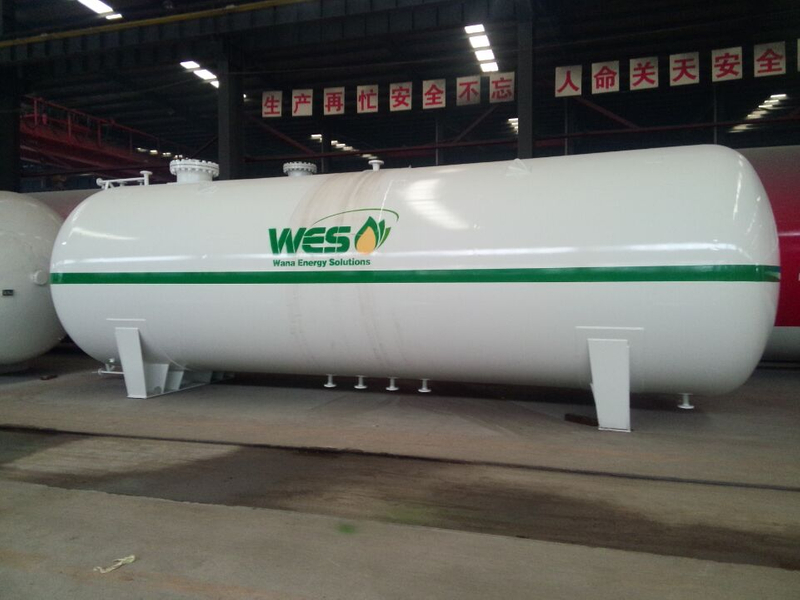

Q345R 14mm 25MT 25Tons 50000Liters 50CBM LPG Storage Tank

Material:Q345R
Diameter:2700mm;
Tank thickness :14mm;
Thickness of end plate:16mm;
Net Weight:10640kg
Dimensions(Length*Width*Height):9182*2728*3318mm
Standard accessories:safety valve,stop valves,magnetic plate level gauge,pressure gauge,thermometer

Quantity:
  • CLW
  • CLW

Parameter of 50cbm LPG Storage Tank

ITEM

PARAMETER

ITEM

PARAMETER

Volume

50cbm

Thickness of Shell

14mm

Tank Material

Q345R

Thickness of End plate

16mm

Overall Size

9182*2728*3318mm

Tank Net Weight

10640kg

Tank Diameter

2700mm

Loading Capacity

19950kg

Design Pressure

1.77Mpa

Gas Density

510~590kg/M3

Hydraulic Test Pressure

2.22Mpa

Corrosion Allowance

1mm

Design Temperature

-20℃~50℃

Heat Treatment

Bulk

Vapor Outlet

DN50

Gas Outlet

DN50

Life time

15 years



Standard Accessories

Model

Item

Qty

Junction surface

J41N-2.5-50

Stop Valve DN50

6

RF

J41N-2.5-25

Stop Valve DN25

2

RF

J41N-2.5-80

Stop Valve DN80

1

RF

J24W-320-DN6

J24W Needle Valve M20*1.5

1


HG21584-95

Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5

1

RF

A42F-25-100

Safety Valve DN80

1

RF

Y-100T

Pressure Gauge M20*1.5  1.5degree 0~4Mpa

1


WTQ-280

Thermometer M33*2 2.5 degree

1

-40℃~60℃
