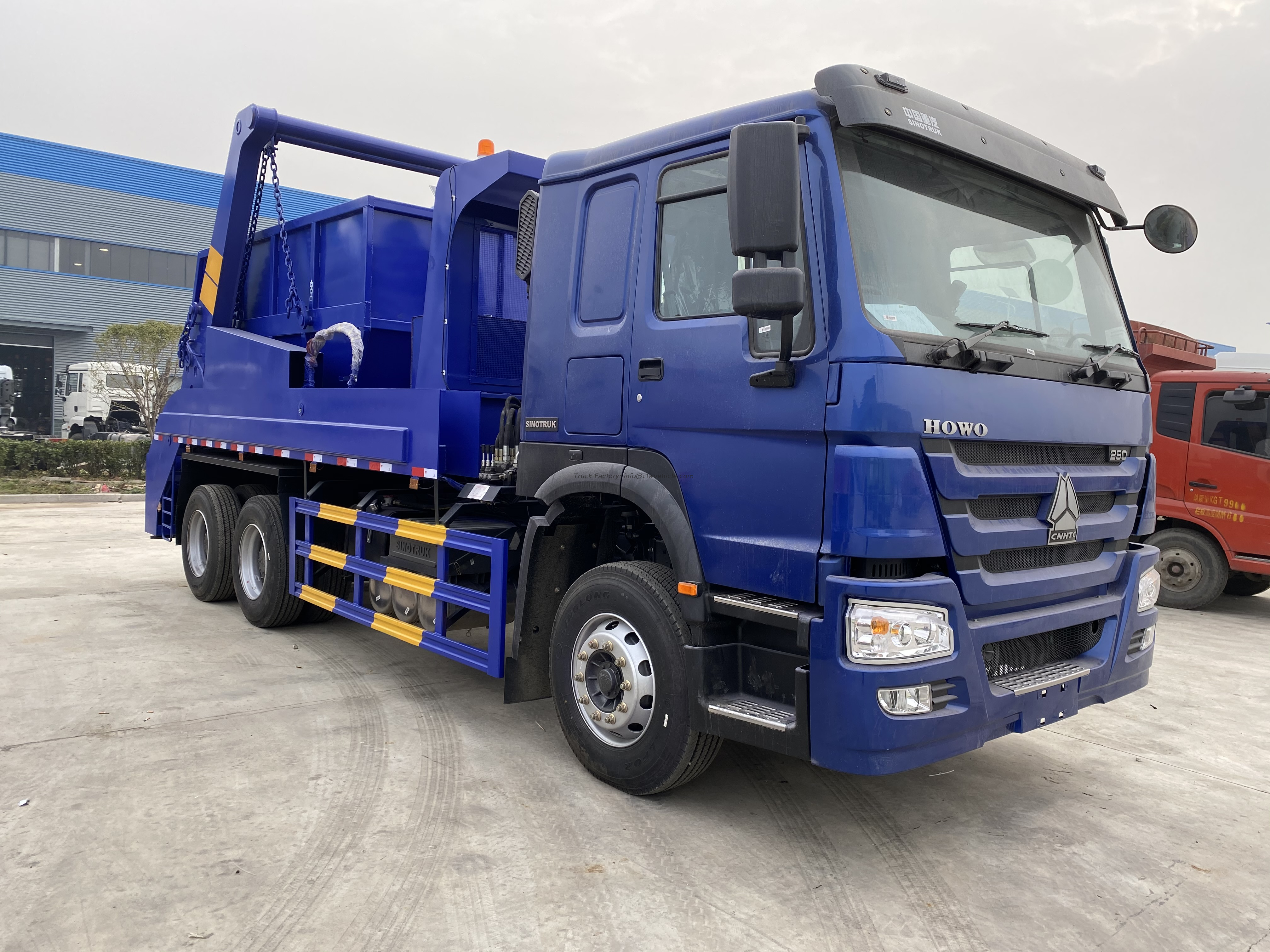

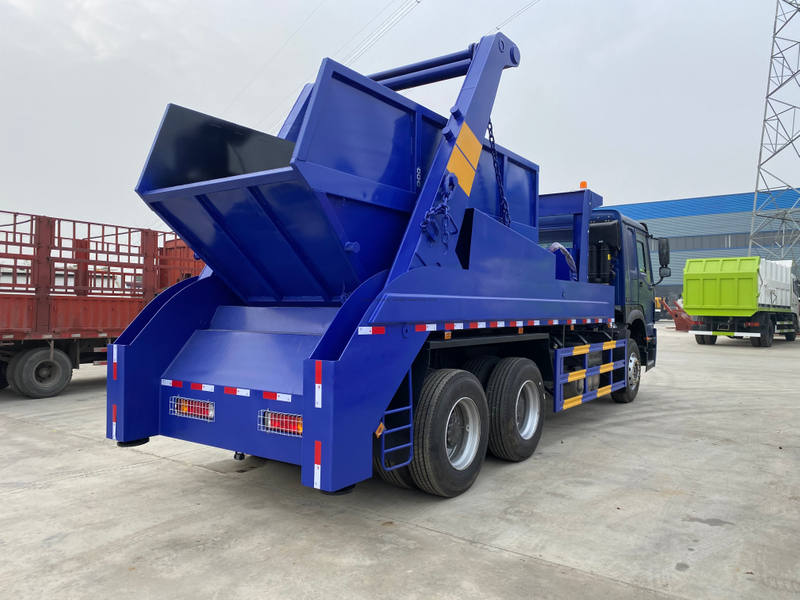

SINOTRUK HOWO 6x4 10m3 Skip loader Roll Container Swing Arm Garbage Truck

A skip loader waste truck is an all-purpose lift-off container truck intended for collection and disposal of large household rubbish and construction waste with the help of the body, as well as for transportation and dumping of various bulk cargoes.
Quantity:
  • CLW
  • CLW


SINOTRUK HOWO 6x4 10m3 13 M3 16 TONS Roll Container Swing Arm Garbage Truck


A skip loader waste truck is an all-purpose lift-off container truck intended for collection and disposal of large household rubbish and construction waste with the help of the body, as well as for transportation and dumping of various bulk cargoes.


Condition

New condition/Left /Right hand drive/4x2

Chassis

Brand

SINOTRUK HOWO

Curb weight(kg)

11000

Wheelbase(mm)

4350+1350

Dimensions(mm)

8995×2480×3300

Overhang (front/rear) (mm)

1250/2340

Wheel track (front/rear) (mm)

1940/1860

Approach/Departure angle(°)

30/17

Axle Load(kg)

3125/9325

Max. driving speed(km/h)

90

Clutch

Reinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake                                                                                     Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Number

10pcs with one spare tire

Specifications

12.00-20

Gear box

Manual type, 10 Forwards & 2 Reverse

Cab

It can accommodate three peopleWith Air conditioner

Engine

Brand

SINOTRUK HOWO

Displacement(ml)

9726 ml

Cylinder quantity(pcs)

6 pcs

Power(kw)

213-273 kw

Horsepower(HP)

266-371 HP

Fuel type

Diesel

Emission standard

Euro 2

Upper

Garbage Tank

Tank material

Q235 Carbon steel

Tank volume(cbm)

10cbm-16 CBM

Max. Loading capacity(tons)

6-16tons

Button thickness(mm)

4.0 mm

Side plate thickness(mm)

4.0 mm

Remarks

1. 4pcs hydraulic oil cylinder

2. 2pcs hydraulic loading leg

3. Swing arm rack and iron chain

4. The color of the tank is optional



CHENGLI SPECIAL AUTOMOBILE CO., LTD . is looking forward to your visiting. The reliant quality, excellent service and reasonable price are the promise we keep.
