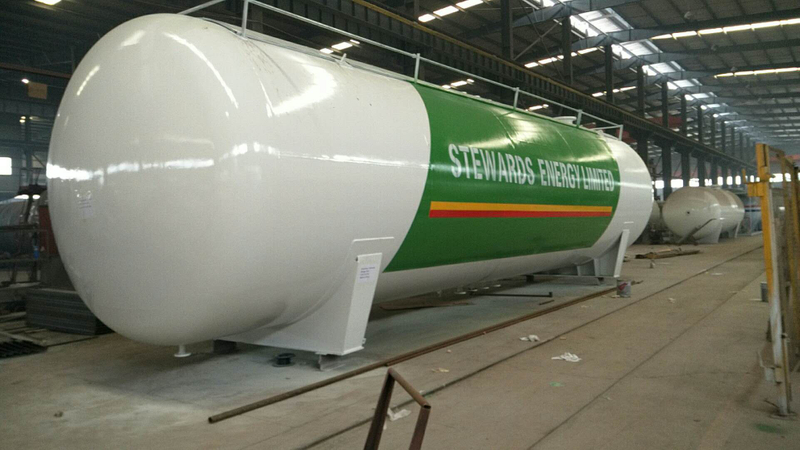

120 Cbm Liquid Ammonia Storage Tank for Nigeria

120 000 litters (120 cbm) LPG TANKER DIMENSIONS
Volume of Tank :120 CBM (120 000 litters)
Filling Weight :47880 kg
Tank Weight:24960 kg
Thickness of Shell :18 mm
Thickness of dish head :20 mm
Tank Diameter :3400 mm
External Dimensions ( length x width x height): 13820*3436*4026 mm
Material of Tank and Main Pressure Parts: Q345 R
Filling Medium : Liquefied Petroleum Gas( liquid ammonia)
Design Pressure:1.77 MPa
Work Pressure: ≤1.6 MPa
Work Temperature :≤50 °C
Corrosion Allowance:2 mm
Medium Density: 420-590 kg / cbm
Certificate: SONCAP / ASME / ISO 9001 / ISO 14001 / OHSAS 18001
Manufacturing Standard :Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China, ASME standard
Safety valve of selection fitting Safety valve , column magnetic reversible level meter, pressure gauge , thermometer , cut-off valve...

Quantity:
  • clw002
  • clw


120 000 litters (120 cbm) LPG TANKER DIMENSIONS

Volume of Tank

120 CBM (120 000 litters)

Filling Weight

47880 kg

Tank Weight

24960 kg

Thickness of Shell

18 mm

Thickness of dish head

20 mm

Tank Diameter

3400 mm

ExternalDimensions

( length x width x height)

13820*3436*4026 mm

Material of Tank and Main Pressure Parts

Q345 R

Filling Medium

Liquefied Petroleum Gas ( liquid ammonia)

Design Pressure

1.77 MPa

Work Pressure

≤1.6 MPa

Work Temperature

≤50 °C

Corrosion Allowance

2 mm

Medium Density

420-590 kg / cbm

Certificate

SONCAP / ASME / ISO 9001 / ISO 14001 / OHSAS 18001

Manufacturing Standard

Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China, ASME standard

Safety valve of selection fitting

Safety valve , column magnetic reversible level meter, pressure gauge , thermometer , cut-off valve...

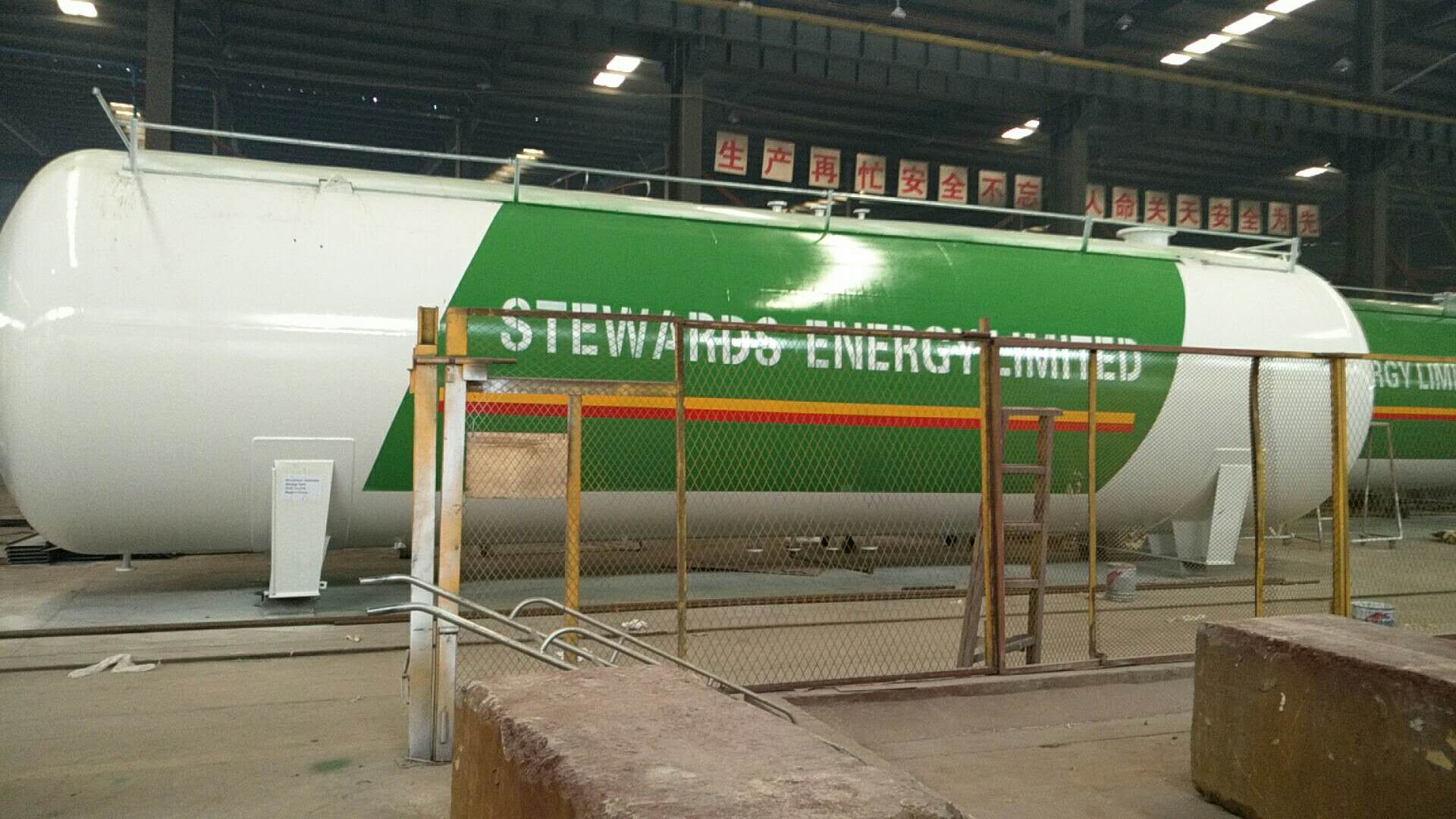

ammonia storage tank 5

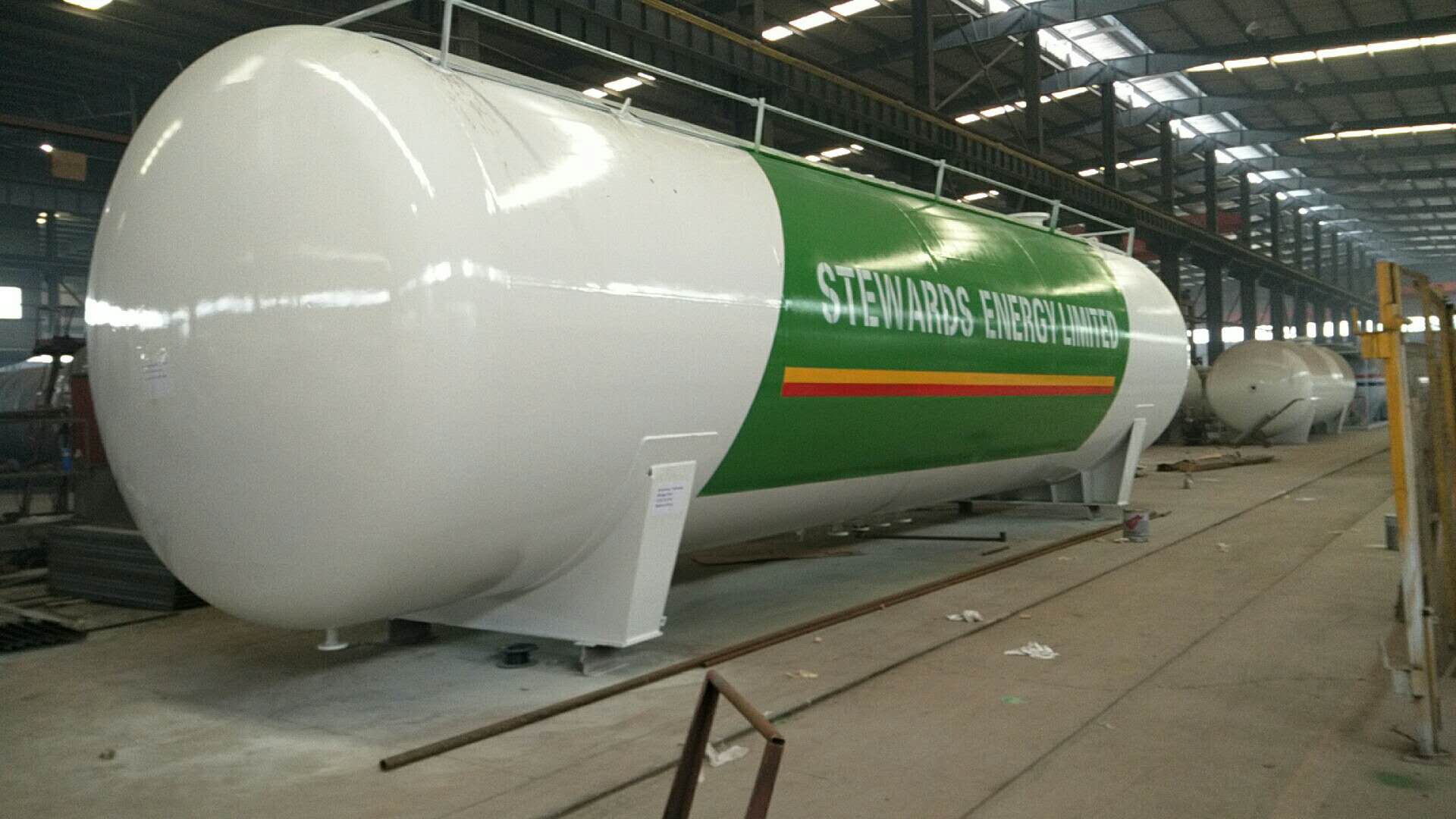

ammonia storage tank
