CLW.CLG18
CLW

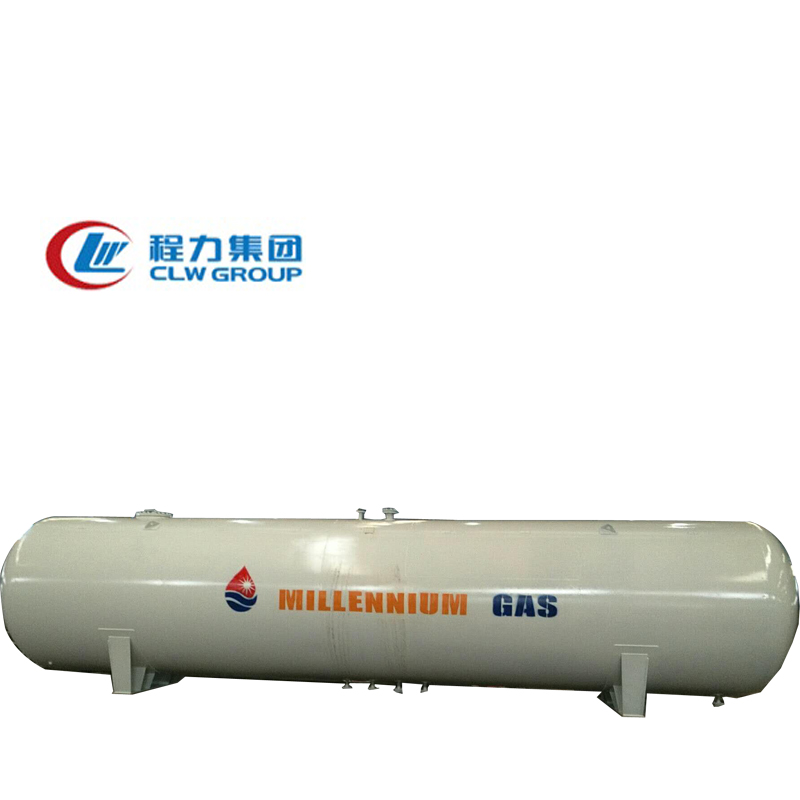

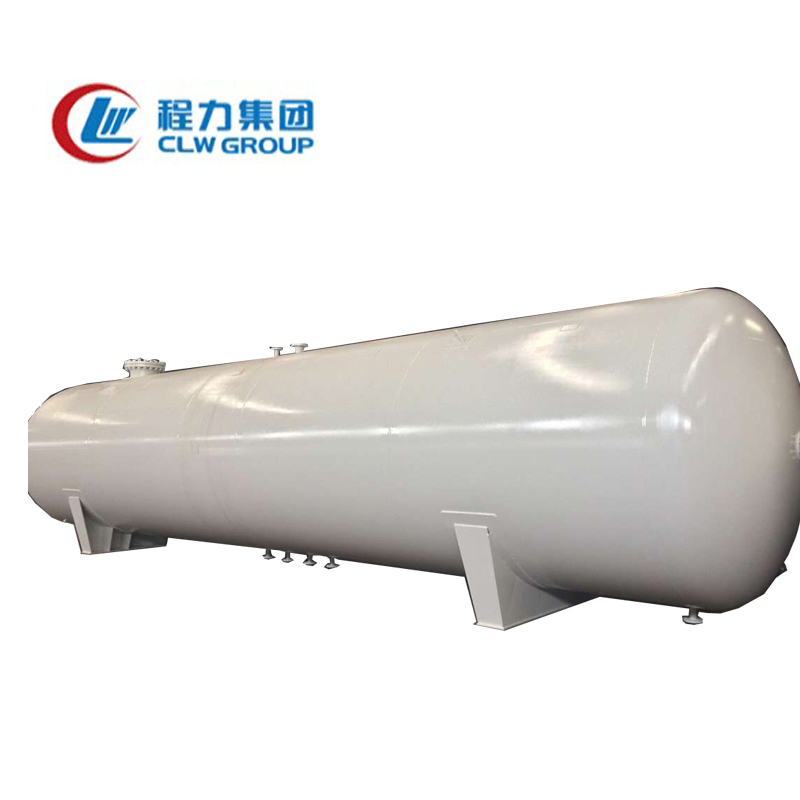

15000 gallon lpg bulk storage tank
Technique Parameter for 70,000l/15000gallon (35tons) lpg gas tanker
Item No. | Parameters |
Volume of Tank (cbm) | 70 |
Tare Weight (kg) | 15000 kg |
Filling Capacity (kg) | 35000 kg |
Thickness of Shell (mm) | 16 |
Thickness of Endplate (mm) | 18 |
tank cylinder diameter (mm) | 3100 |
External Dimensions (mm) | 11166*3132*3722 |
Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
Filling Medium | Liquefied Petroleum Gas |
Design Pressure | 1.77MPa ( 256.65 Psi) |
Corrosion Allowance | 1 mm |
Medium Density | 420 kg/ cbm |
Accessory list for 70,000l/15000gallon (35tons) lpg cooking gas tank
Parts No | Size | Parts Name | Model No. | Quantity | Unit |
a | DN50 | Cut-off Valve for Drain Outlet | J41N-2.5-50 | 1 | set |
b | DN50 | Cut-off Valve for Liquid Phase Outlet | J41N-2.5-50 | 1 | set |
c1 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 | 1 | set |
c2 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 | 1 | set |
d | DN50 | Cut-off Valve for Liquid Inlet | J41N-2.5-50 | 1 | set |
i | DN50 | Cut-off Valve for Air Drain Outlet | J41N-2.5-50 | 1 | set |
h | DN80 | Cut-off Valve for Safety Valve | J41N-2.5-80 | 1 | set |
f1 | DN25 | Cut-off Valve for Magnetic Level Gauge | J41N-2.5-25 | 1 | set |
f2 | DN25 | Cut-off Valve for Magnetic Level Gauge | J41N-2.5-25 | 1 | set |
e | M33*2 | Thermometer | WTQ-280 | 1 | set |
g | M20*1.5 | Pressure Gauge | Y-100T | 1 | set |
/ | / | Magnetic Level Gauge | HG21584-95 | 1 | set |
/ | DN80 | Safety Valve | A42F-25 | 1 | set |
M20×1.5 | Needle Valve | J24W-320-DN6 | 1 | set | |
Total Quantity | 14 | set |

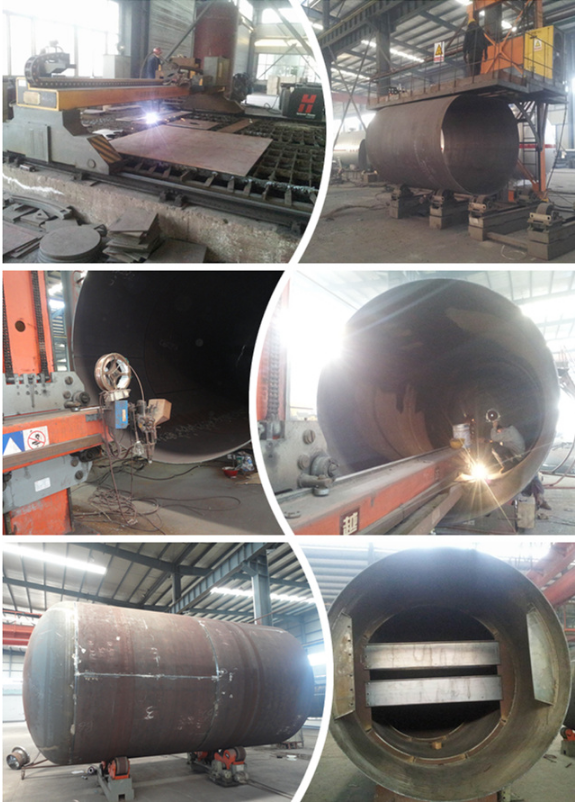

Procession for lpg gas tanker 35tons (70000liters/15000gallon)

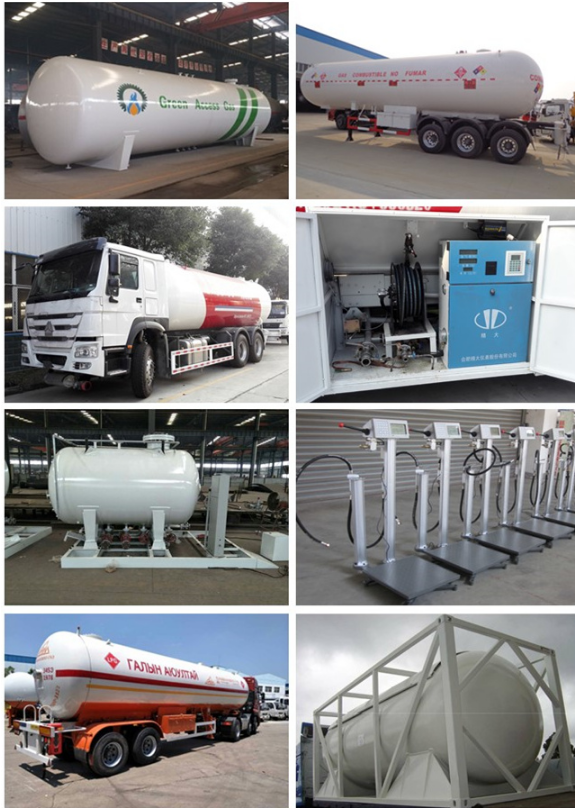

Variety of lpg gas tanker by CLW group
1)lpg storage tank
2) lpg tank truck
3) lpg tank semi trailer ( tank capacity 40,000l 45,000l 49,000l 50,000l 54,000l 56,000l 59,000l 60,000l)
4) lpg tank container (20ft 30ft 40ft)
5) lpg tank bobtail ( filling accessories: lpg filling gun, lpg filling pump, flow meter)
6) lpg tank skid filling station ( lpg filling scale, lpg dispenser, lpg pump and motor, lpg compressor, flow meter, level gauge, safety valve, cut off valve, bottom base...)
About our company
ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province,China. SuiZhou is near to wuhan, Xiangfan and Shiyan,with these cities, there is a Golden Car Manufacturing hallway along the 318 highway. Among that, SuiZhou is famous as the capital of Chinese special automobile manufactory.
Since being founded in 1998, ChengLi has continually worked to improve its production processes and production tools. Qualified personnel ensure the highest standards of quality control in the manufacture of the principal components and the final assembly. Covering an area of 8 hectares more than 5000 vehicles are produced each year. Our company has independent export right, the product had delivery to many countries around the word. Take 2008 for example, the amount of export reach 2000 units. The registered Labels CLW is well known in these years.
Based on high quality and advanced technology, the leading varieties include more than 200 types of trucks such as water truck, garbage truck, fecal and sewage suction truck,refuse compactor, fuel tank, aerial platform, truck with crane, dump truck, van truck, trailers, fire-fighting truck, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, LPG tank, etc. All products have passed the ISO9001-2000 and t 3C(China Compulsory Certification) standard.
Packaging
