CLW5160WR001
CLW
Liquefied petroleum gas is a mixture of propane and butane, usually accompanied by a small amount
of propylene and butenes. A strong odorant, ethanethiol, is usually added so that leaks of LPG can be easily detected.
LPG belongs to the third category of dangerous goods. Combustible, toxic, explosive and corrosive.

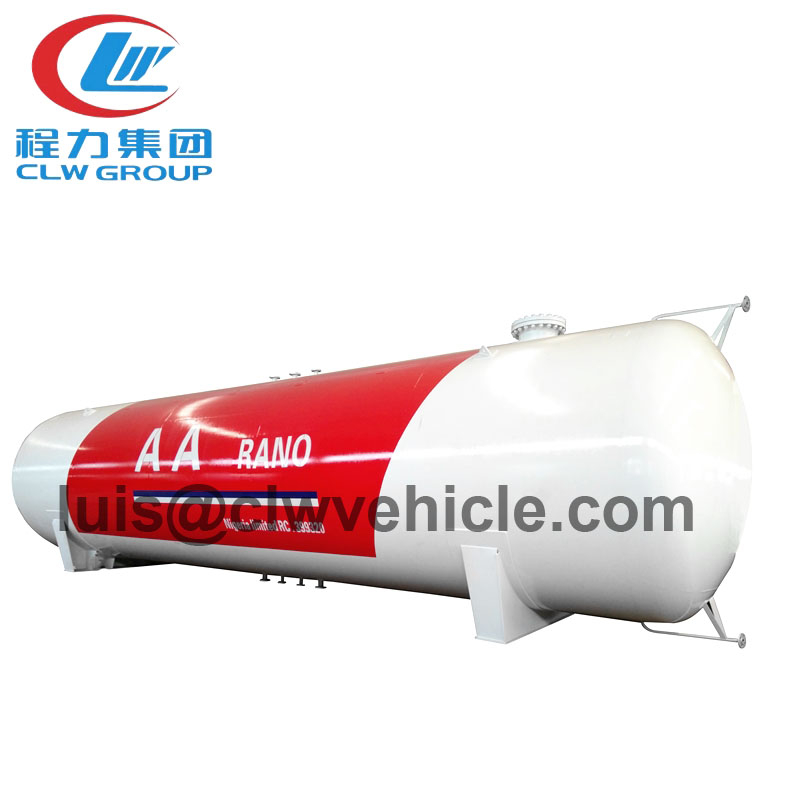

Specification of 60cbm LPG Tank | ||
Volume of Tank | 60CBM | |
Filling Weight | 4900 kg | |
Tank Weight | 2950 kg | |
Thickness of Shell (mm) | 14 mm | |
Thickness of Endplate (mm) | 16 mm | |
Tank Diameter (mm) | 2700 mm | |
External Dimensions (mm) (length x width x height) | 10962x2728x3318 mm | |
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |
Filling Medium | Liquefied Petroleum Gas ( Propane) | |
Design Pressure | 1.77 MPa | |
Corrosion Allowance | 1 mm | |
Medium Density | 420-590 kg/ cbm | |
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||
Main parts of LPG Tank | ||
Item | Specification | Quantity(pc) |
Discharge Pipe | DN80 | 1 |
Inflow Pipe | DN80 | 1 |
Outlet | DN50 | 1 |
Gas phase balance pipes | DN50 | 2 |
Manhole | DN450 | 1 |
Drain Hole | DN50 | 1 |
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | ||

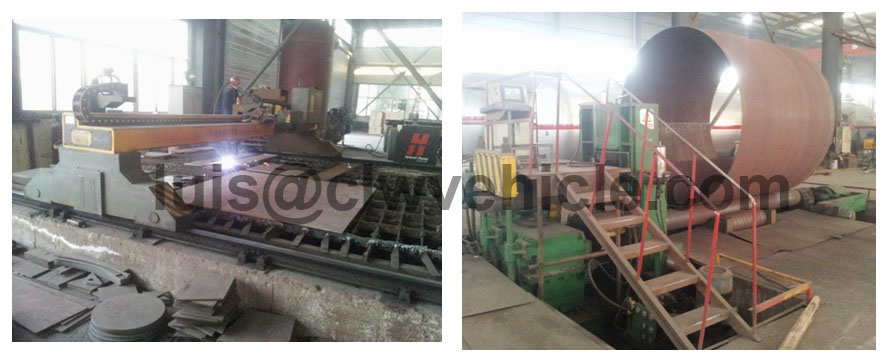

Steel Plate Cutting &Rolling

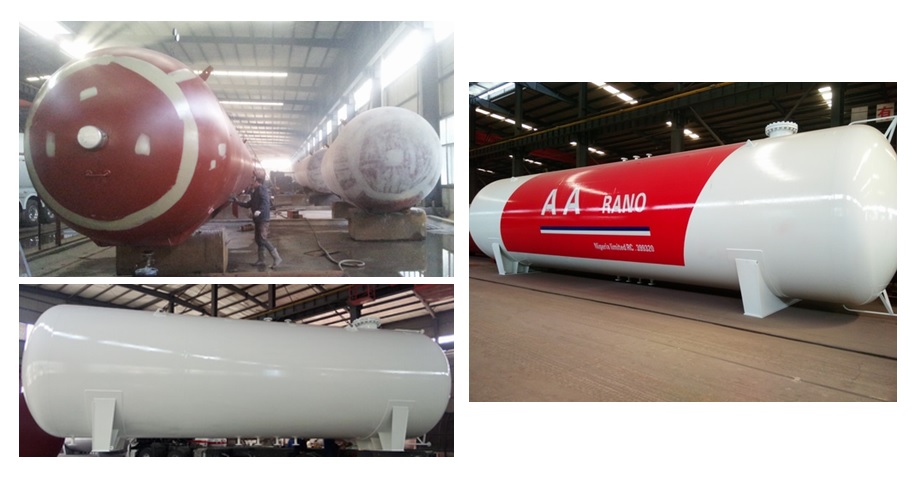

Painting
Certification

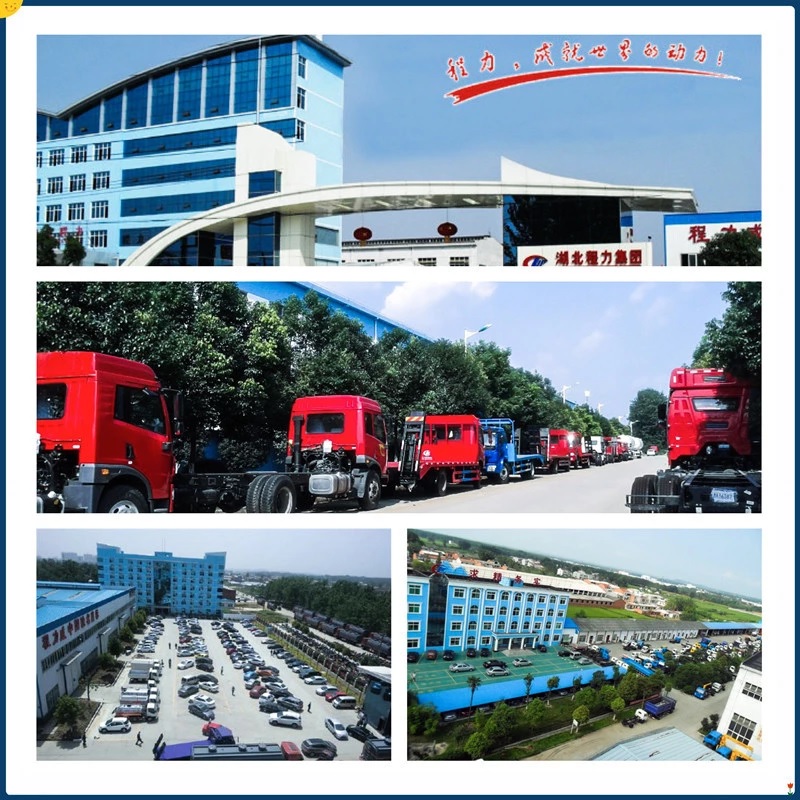

Company Introduction
We have customers from worldwide countries and areas, such as Kenya, Nigeria,Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, middle-east,African, South-african, Australian and so forth. We serve the best service for our customers.Welcome all friends come to visit our factory. The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
FAQ
Q1: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the customer’s requirements?
A: Yes, we can produce by your requirements or technical drawings.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
