Technical Parameters
Technical specification | Parameters | Subject | Parameters | ||||

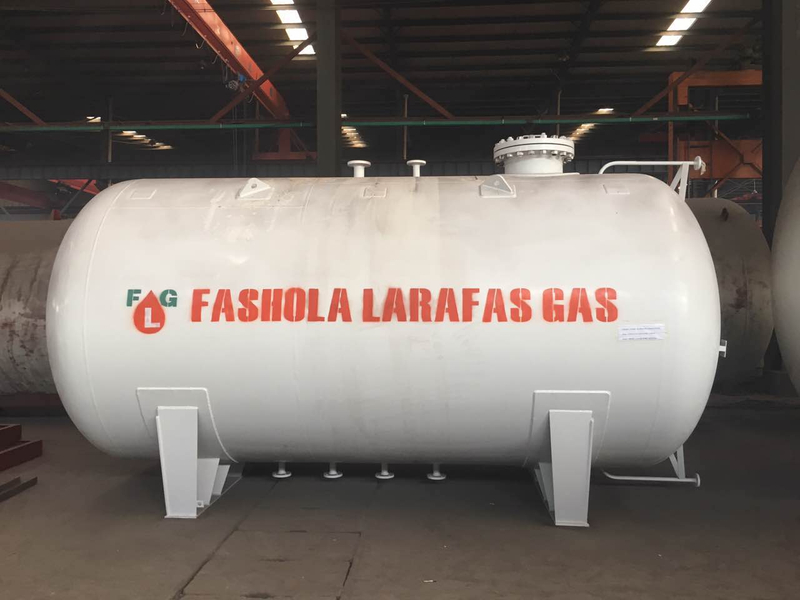

Ammonia Storage Tank | Item | 75000 Gallon Ammonia Storage Tank for Sale | Liquid Indictor | Model | UZFAL-2.5RF2640-0.50 | ||
Overall dimensions(mm) | 7402*1928*2508 | Version | Magnetic | ||||
Net weight(Kg) | 6400 | Normal pressure | 2.5Mpa | ||||
Vessel type | III | Scope of testing | 50-2300mm | ||||
Designing pressure | 2.16Mpa | Precision | 2.5 | ||||
Working pressure | 1.61Mpa | Safety Valve | Model | A42F-2.5-80 | |||
Designing temperature | -19~50°C | Version | Built-in | ||||
Filling Medium | Ammonia | Normal pressure | 2.5 Mpa | ||||
Corrosion margin | 2.0mm | Normal diameter | DN80 | ||||
Volume | 75000 gallon (20000L) | Opening pressure | 1.68-1.76 Mpa | ||||
Heat treatment | 620℃ for 35-40 minutes | Re-seating pressure | ≥80% of opening pressure | ||||
Filling density | 520kg/m3 | Handling System | Normal Diameter | Feed pipe | DN80 | ||
Material | Q345R | Drain pipe | DN80 | ||||
Hydraulic test pressure | 2.22 Mpa | Admission port | DN50 | ||||
Gas tight test pressure | 1.77 Mpa | Sewage outfall port | DN80 | ||||
Cylinder thickness | 16mm | Vent nozzle port | DN80 | ||||
Endplate thickness | 16mm | stand | GB150-1998 | ||||
Service time | 20 years | Safety regulation of pressure vessels | |||||
Accessory | Safety valve, Liquid level gauge, pressure gauge, thermometer, cut-off valves, Manhole, etc. | ||||||
Company Introduction
Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.
Our Service
1. Special Trucks: Dump Truck, Septic Tank Truck, LEDTruck, Ice Cream Truck, Refrigerator Truck ...
2. Pressure Vessels LPG,Liquid Ammonia,Dimethyl ether,Isobutane,Propylene
3. We will reply you in 24 hours.
4. After sending, we will track the products once every two days, until you get the products. When you receive the goods, test them, and give us a feedback.
Any questions , please contact with us, we will provide technique solutions for you.
FAQ
Q1: What is your terms of payment?
A: T/T 30% deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the customer’s requirements?
A: Yes, we can produce by your requirements or technical drawings.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
