CLWAT50
CLW

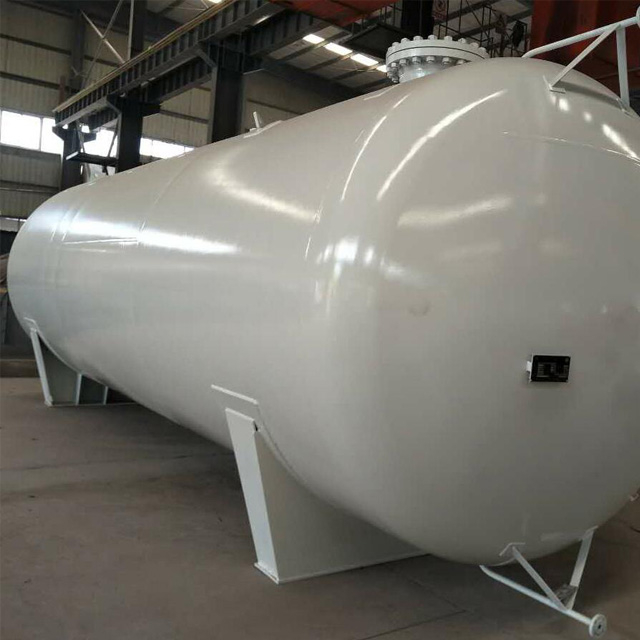

Advantage of Ammonia storage tank
1. Corrosion resistant, durable, high in performance, easy to install and offered in different capacities
2. Humanized structure design & easy to operate
3. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation
4. PU Foam Insulation are available to keep temperature
Specification of Fire Protection Anhydrous 50cbm Ammonia Storage Tanks
Volume of Tank | 50 CBM (50,000liters) |
Filling Weight (kg) | 24700 |
Tank Weight (kg) | 13100 |
Thickness of Shell (mm) | 16 |
Thickness of End plate (mm) | 18 |
Tank Dimensions (mm) (length x width x height) | 11516*2432*3010 |
Major Materials | Q345R Carbon Steel |
Medium | Liquefied Ammonia |
Design Pressure(MPa) | 2.16 |
Density (kg/m3) | 520 |
Corrosion Allowance(mm) | 2 |
Manhole | DN450/DN500 |
Advantage of Ammonia storage tank
1. Corrosion resistant, durable, high in performance, easy to install and offered in different capacities
2. Humanized structure design & easy to operate
3. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation
4. PU Foam Insulation are available to keep temperature
Specification of Fire Protection Anhydrous 50cbm Ammonia Storage Tanks
Volume of Tank | 50 CBM (50,000liters) |
Filling Weight (kg) | 24700 |
Tank Weight (kg) | 13100 |
Thickness of Shell (mm) | 16 |
Thickness of End plate (mm) | 18 |
Tank Dimensions (mm) (length x width x height) | 11516*2432*3010 |
Major Materials | Q345R Carbon Steel |
Medium | Liquefied Ammonia |
Design Pressure(MPa) | 2.16 |
Density (kg/m3) | 520 |
Corrosion Allowance(mm) | 2 |
Manhole | DN450/DN500 |
