| Quantity: | |
|---|---|
CLW
CLW

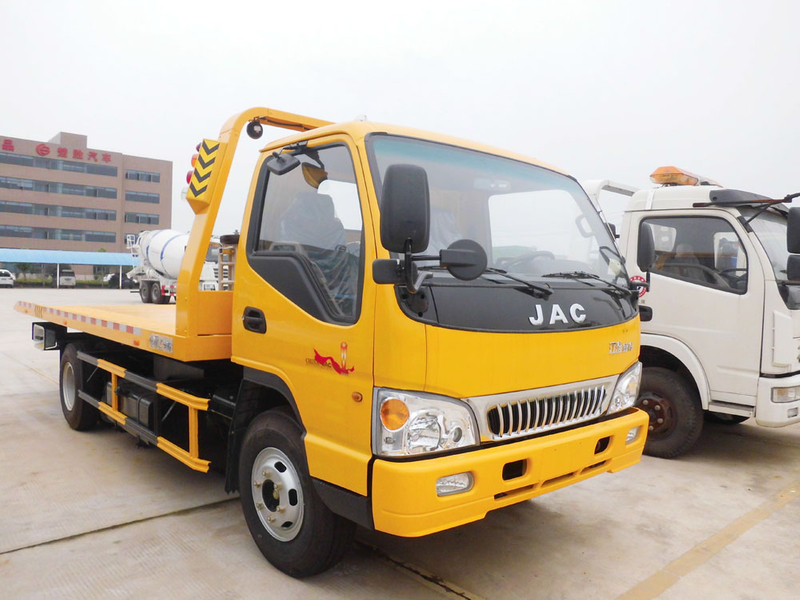

Specification of JAC 4ton 4*2 LHD flat bed wrecker truck with 4 ton crane | ||
Name | JAC 4ton 4*2 LHD flat bed wrecker truck with 4 ton crane | |
Driving Type | 4*2 , Left Hand Driving | |
Cab | 3 Passengers Allowed, With Air Conditioning | |
Vehicle Main Dimensions | (L x W x H)mm | 7495*2300*2500 |
Wheel base (mm) | 3815 | |
Front/Back Overhang | 1110/2470 | |
Appro./Depart. Angle | 22/11 | |
Curb Weight(kg) | 6400 | |
Max. driving speed(km/h) | 105 | |
Engine | Model | D30TCIE1 |
Maximum horsepower | 117 hp | |
Displacement | 2.977L | |
Maximum output power | 115kW | |
Intake form | Turbocharged | |
Cylinder number | 4 | |
Cylinder arrangement | inline | |
Fuel type | diesel | |
Rated speed | 3200rpm | |
Maximum torque | 400N.m | |
Maximum torque speed | 1500-2700rpm | |
Minimum fuel consumption under full load | ＜208g/kW.h | |
Engine type | 4-cylinder in-line, 16-valve, double overhead camshaft, supercharged intercooler, high pressure common rail fuel injection | |
Cylinder x stroke | 95*105mm | |
Number of valves per cylinder | 4 | |
Emission standard | Euro 5 | |
Gearbox | 6 forwards& 1 reverse | |
Tire | 7.50R16, 7pc including 1 spare tire | |
Clutch | Reinforced Diaphragm Clutch | |
Steering Gear | Power Steering, Hydraulic Steering With Power Assistance | |
Upper Part | ||
Platform Organ | Length x Width（mm） | 5200x2300 |
Platform Power Stroke(mm) | 2680 | |
Min Angle(°) | 7.6 | |
Max Lifting Capacity(kg) | 4000 | |
Winch Rating Pulling Capacity(kg) | 4000 | |
Length Of Steel(m) | 21 | |
Hoisting Organ | Max Under-Hoisting Capacity(mm) | 2500 |
Rating Under-Pulling Capacity(kg) | 5000 | |
Fully Extended Max Under-Hoisting Capacity(mm) | 700 | |
Main Specification Of 4 Ton CLW straight Crane (3 section) | |
Crane Brand | CLW |
Max lifting weight | 4000kg |
Extendable Boom Section | 3 |
Boom Type | Straight Arm |
Lifting Max. Height | 10.6 m |
Working Radius | 8.0 m |
Installation space | 0.7m |
Self weight | 1300kg |
Max lifting moment | 10T.m |
Recommended power | 16kw |
Recommended hydraulic flow | 25L/min |
Rated hydraulic pressure | 20MPa |
Oil tank capacity | 60L |
Slewing angle | 360°All Rotation |
The weight of crane | 1300kg |
Installation space | 700mm |
Detail pictures
