| Quantity: | |
|---|---|
CLWLPG50
CLW

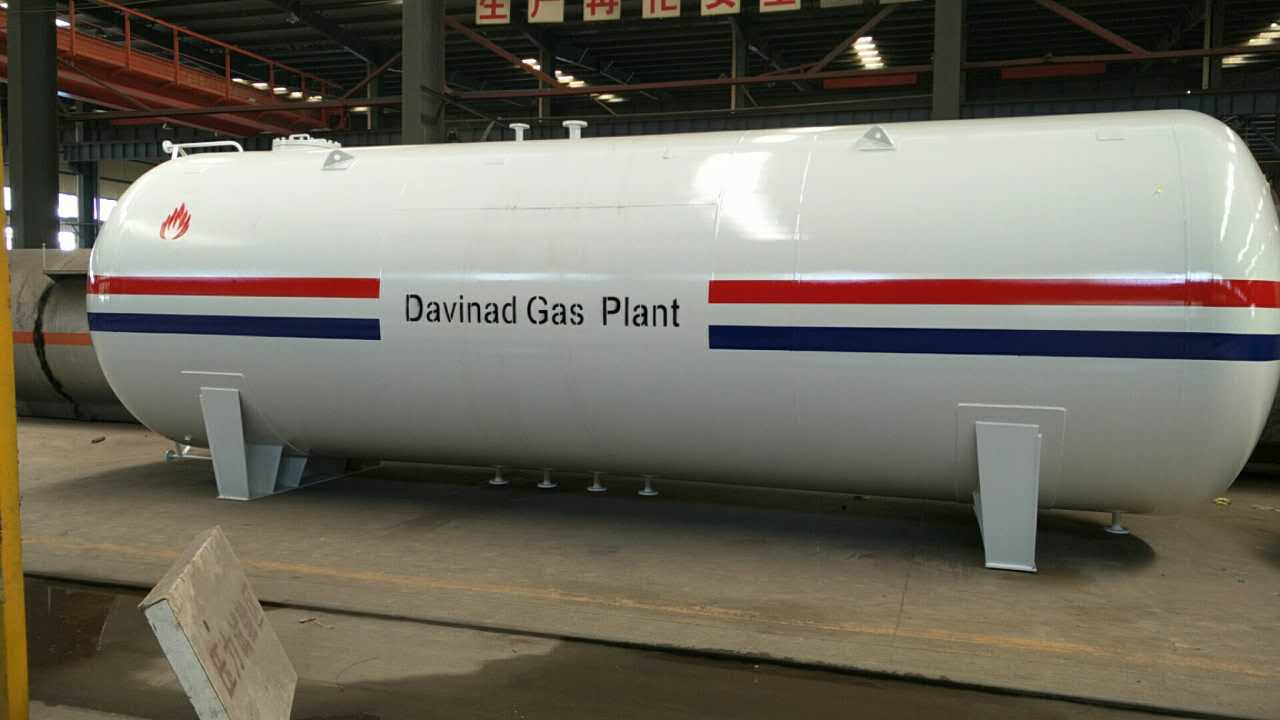

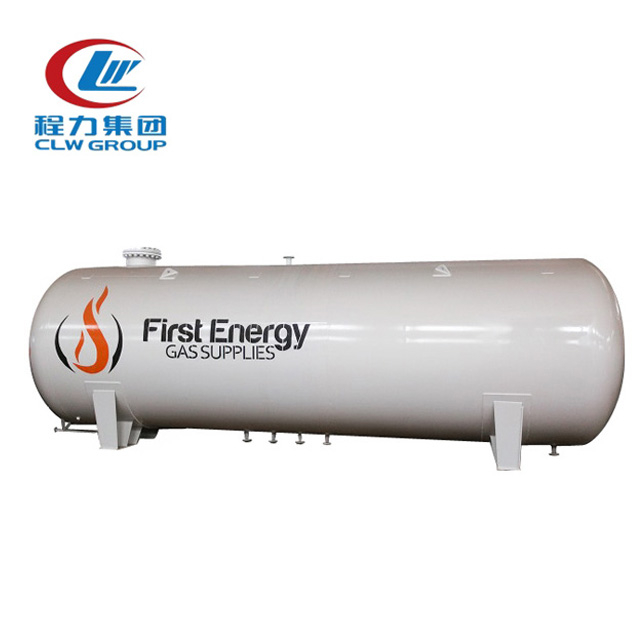

Q345R 14mm 25MT 50000Liters 50CBM LPG Storage Tank offered by China Manufacturer CLW Group, with high quality and reasonable price
1. LPG pressure vessel
2. For gas, oil, petroleum use
3. Anti-corrosion, anti-acid
Parameter of 50cbm LPG Storage Tank | ||||||
ITEM | PARAMETER | ITEM | PARAMETER | |||
Volume | 50cbm | Thickness of Shell | 14mm | |||
Tank Material | Q345R | Thickness of End plate | 16mm | |||
Overall Size | 9182*2728*3318mm | Tank Net Weight | 10640kg | |||
Tank Diameter | 2700mm | Loading Capacity | 19950kg | |||
Design Pressure | 1.77Mpa | Gas Density | 510~590kg/M3 | |||
Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
Design Temperature | -20℃~50℃ | Heat Treatment | Bulk | |||
Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
Life time | 15 years | |||||
Standard Accessories | ||||||
Model | Item | Qty | Junction surface | |||
J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |||
J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
A42F-25-100 | Safety Valve DN80 | 1 | RF | |||
Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40℃~60℃ | |||
Q345R 14mm 25MT 50000Liters 50CBM LPG Storage Tank offered by China Manufacturer CLW Group, with high quality and reasonable price
1. LPG pressure vessel
2. For gas, oil, petroleum use
3. Anti-corrosion, anti-acid
Parameter of 50cbm LPG Storage Tank | ||||||
ITEM | PARAMETER | ITEM | PARAMETER | |||
Volume | 50cbm | Thickness of Shell | 14mm | |||
Tank Material | Q345R | Thickness of End plate | 16mm | |||
Overall Size | 9182*2728*3318mm | Tank Net Weight | 10640kg | |||
Tank Diameter | 2700mm | Loading Capacity | 19950kg | |||
Design Pressure | 1.77Mpa | Gas Density | 510~590kg/M3 | |||
Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
Design Temperature | -20℃~50℃ | Heat Treatment | Bulk | |||
Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
Life time | 15 years | |||||
Standard Accessories | ||||||
Model | Item | Qty | Junction surface | |||
J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |||
J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
A42F-25-100 | Safety Valve DN80 | 1 | RF | |||
Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40℃~60℃ | |||
