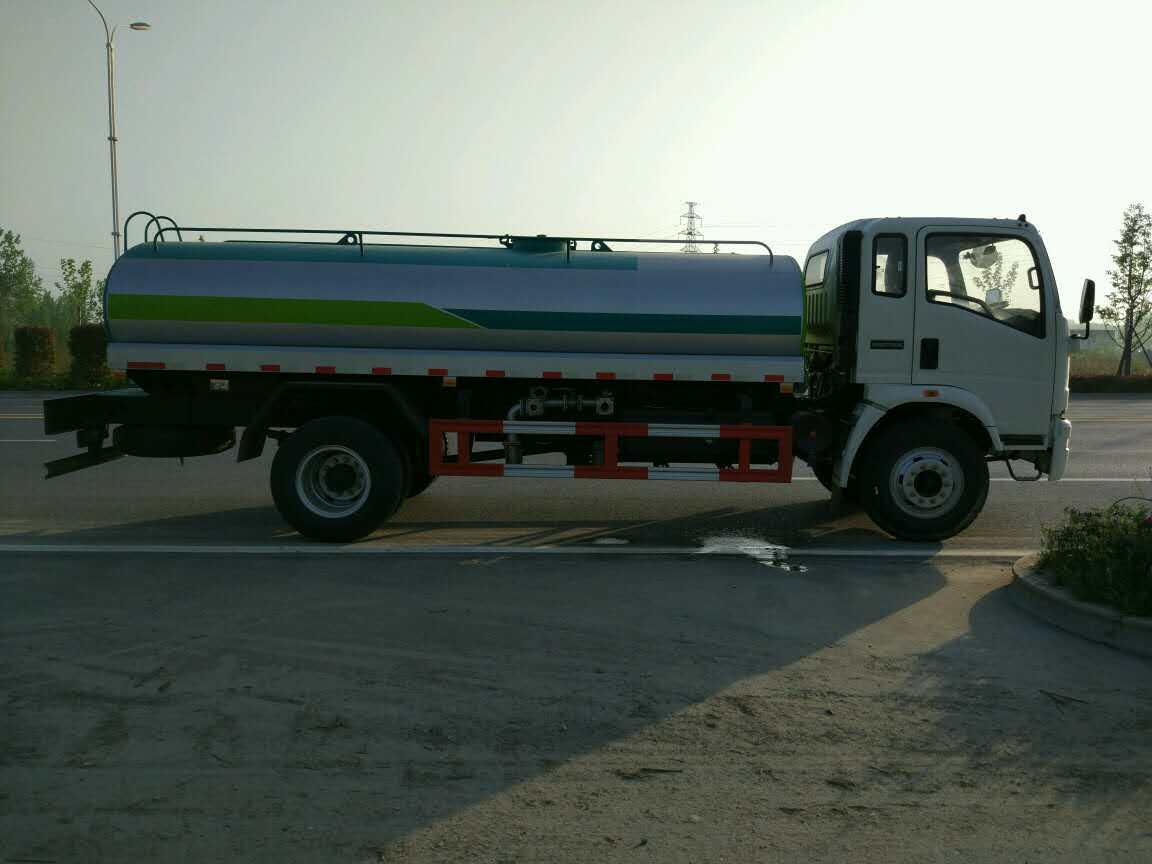

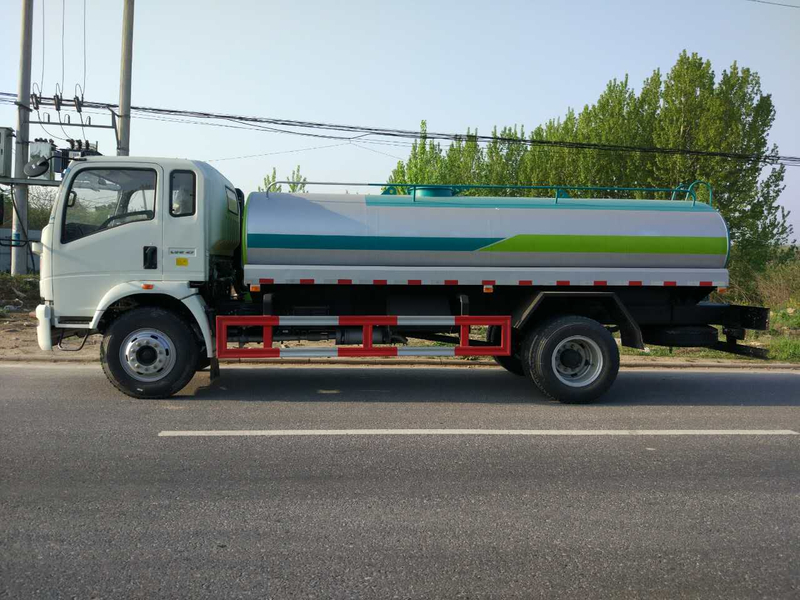

Sinotruk Howo New Condition 10cbm Water Spraying Truck Water Tank Truck

Availability:
Quantity:
  • CLW

  • HOWO

Sinotruk Howo New Condition 10cbm Water Spraying Truck Water Tank Truck


Item Unit Description
Model
Howo light duty water truck
Dimension mm 7000*2300*2500
Tank Dimension mm 4000*1550*1050 / 5 m3
Option: 5~6 cubic meter, To be confirmed
Material Carbon Steel Q345A
Option Stainless Steel 304 for option
Curb Weight kg 3785
G.V.W Kg 8280
Wheel Base mm 3800
F/R track base mm 1600 / 1535
F/R Axle-load Kg 3000 / 8000
Type Steel Spring
Approach/Departure angle . 16 / 12
Traction system Type 4*2
Tire Specification/Number Type 7.50R16 / 6 Units+1 Spare Unit
Max speed Km/h 85
Engine  Model CY4102-CE4D
Emission/Kw 3856 cc, 83 Kw / 3200 r
Horse Power 113 Hp
Power 275 N.m -  1800~2000 r/min
Type Diesel, 4 cylinder, turbocharge, water cooling
Brand Anhui QuanChai Engine Power.
Gear box model 5F&1R,  Manual
Electronic V 12
Cab Person 3
Type Reversable, Manual
Steering Type Powering
Installing LHD or RHD
Air Condition Yes Radio, CD.
Remark: Installing water pump to loading or discharge water, side input and output port.
Option~ Installing beam alarm light, installing dot alarm light.rear LED alarm light.
Option~ if replacing with stainless steel water pump, water pipe, Meanwhile, if installing water spraying function, front and rear spraying, with rear spraying cannon.
Option~Installing ABS braking system


                                                                          Water Tank

Tank

Volume

5000L

Material

Q235A Carbon steel

Thickness(mm)

5

Shape

Ellispe or Square Round

compartment

Each Compartment equipped with a manhole and anti-wave plate.

Standard Equipment

1. Equipped with front,rear,side sprinkler (sprinkling width>14m )



2.Equipped with rear working platform with water cannon which can be turned all-round (range>28m),can be adjusted into flinging, heavy rain,light rain, drizzle model, with security barrier.



3.Equipped with CLW pump(suction lift>6m)



4.Equipped with fire valve, water valve, and filter gauze

Optional Equipment

5. Firefighting pipe

6. Firefighting Pump

7.The painting


Details:

水车图


Advantages:


1) Dongfeng famous brand water spraying truck

2) Volume of tank: 5cbm water spraying truck

3) Low oil consumption with good economic water spraying truck

4) Chinese famous brand pump water spraying truck

5) High-pressured Sprinkler, spraying of water to be possible to adjust columnar and the fog shape water spraying truck

6) Optional fire pump and fire-fighting accessories water spraying truck

7) BV ISO CCC approved, accept customes' OEM customized water spraying truck


Fuctions:


Self suction and self discharge function, front flushes sprinkles, side spurts, post positioned work table.


Applications:


Water sprinkler truck, also known as multifunctional green sprinkler truck, is used for cleaning the city road, large factories, troops, gardens ect. Besides, it can also be used for temporary emergency sprinkler.


CLW GROUP are specialized in manufacturing 5,000L-30,000L water tank truck and exports a large number of trucks abroad every year. Our trucks have a competitive advantage in the market both in price and quality.
